Pump Controllers
Fixed Speed
Presflo Multi
This is the most economic option and will transform the water pressure and flow in your property. This will deliver the full pressure of the pump at the in use flow rate.
The updated version of the Presflo Multi now comes with an integrated 1-litre expansion tank, adjustable cut-in pressure and adjustable amp settings.
Fixed Speed

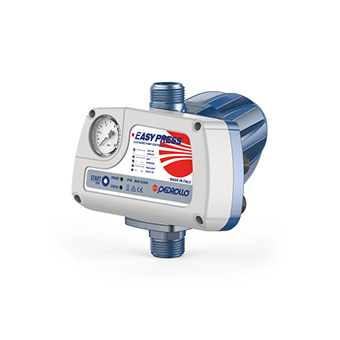

Simplicity / EasyPres
Easy Press features a pressure sensor and a flow sensor linked to an electronic system that automatically activates the pump when a tap’s opening lowers the pressure below a specified level and deactivates it when the flow stops or dips under 2 L/min.
The integrated electronics protect the pump from dry running; frequent start-ups due to leaks in the system; lockout due to plant inactivity, cut-in pressure is preset to 2.2 Bar.
Variable Speed

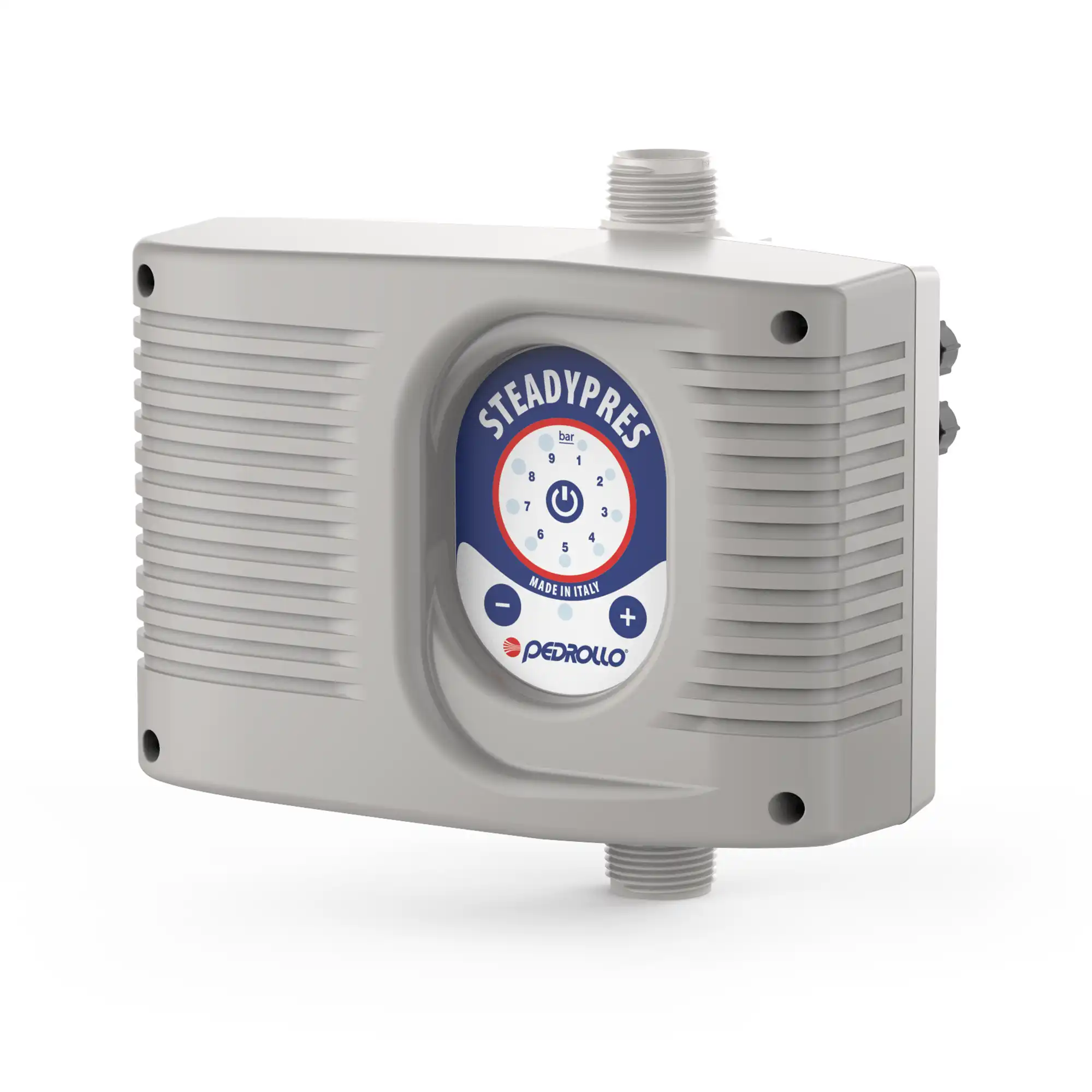

SteadyPres / VSD
The variable speed option allows you to choose your desired pressure, speeding up and slowing down to suit demand.
Whatever you are doing – washing up, watering the garden, having a shower – or all 3 together – the pressure will continue to be the same to give you constant pressure at every outlet with adjustable operating settings.
Pump Systems

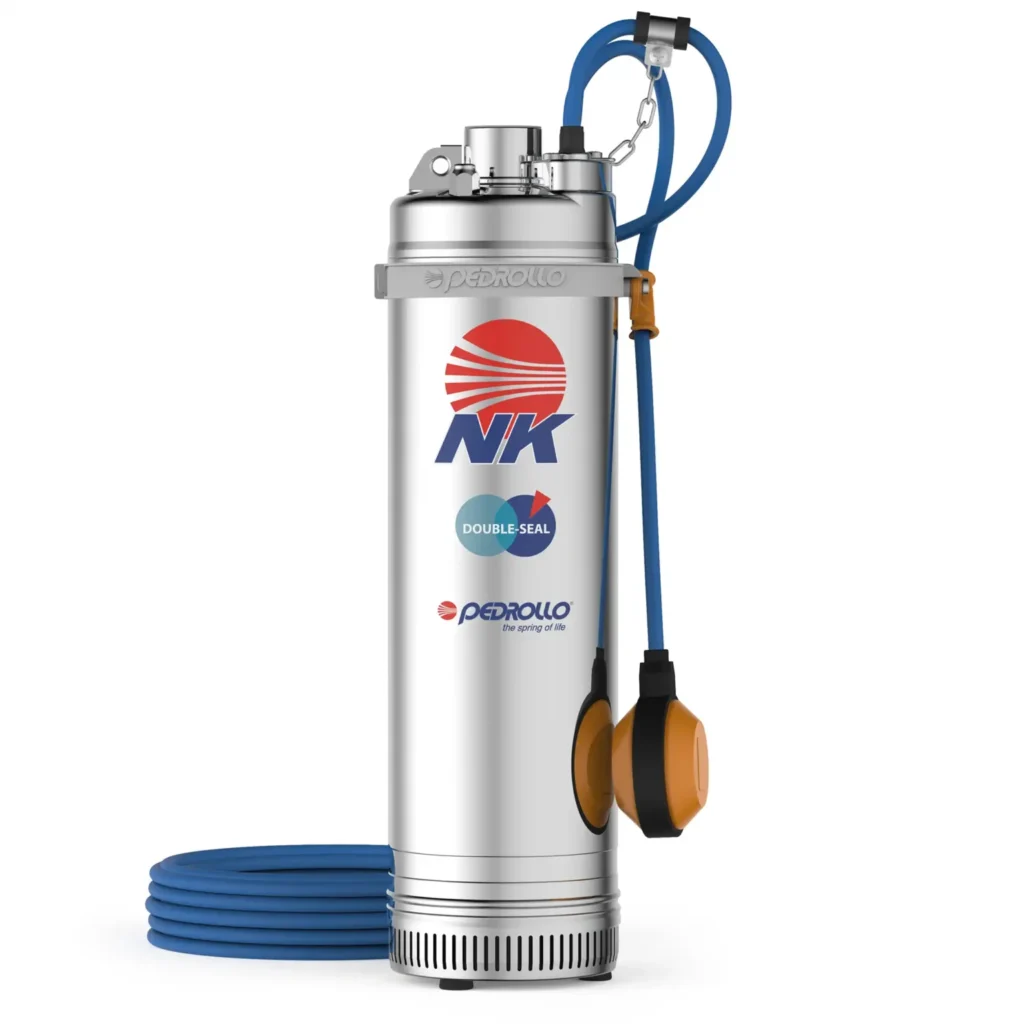

Variable Speed NKM 2/4 6-E
The variable speed pumps are for pumping clean water in the domestic, civil, agricultural sector, water distribution and pressure boosting.

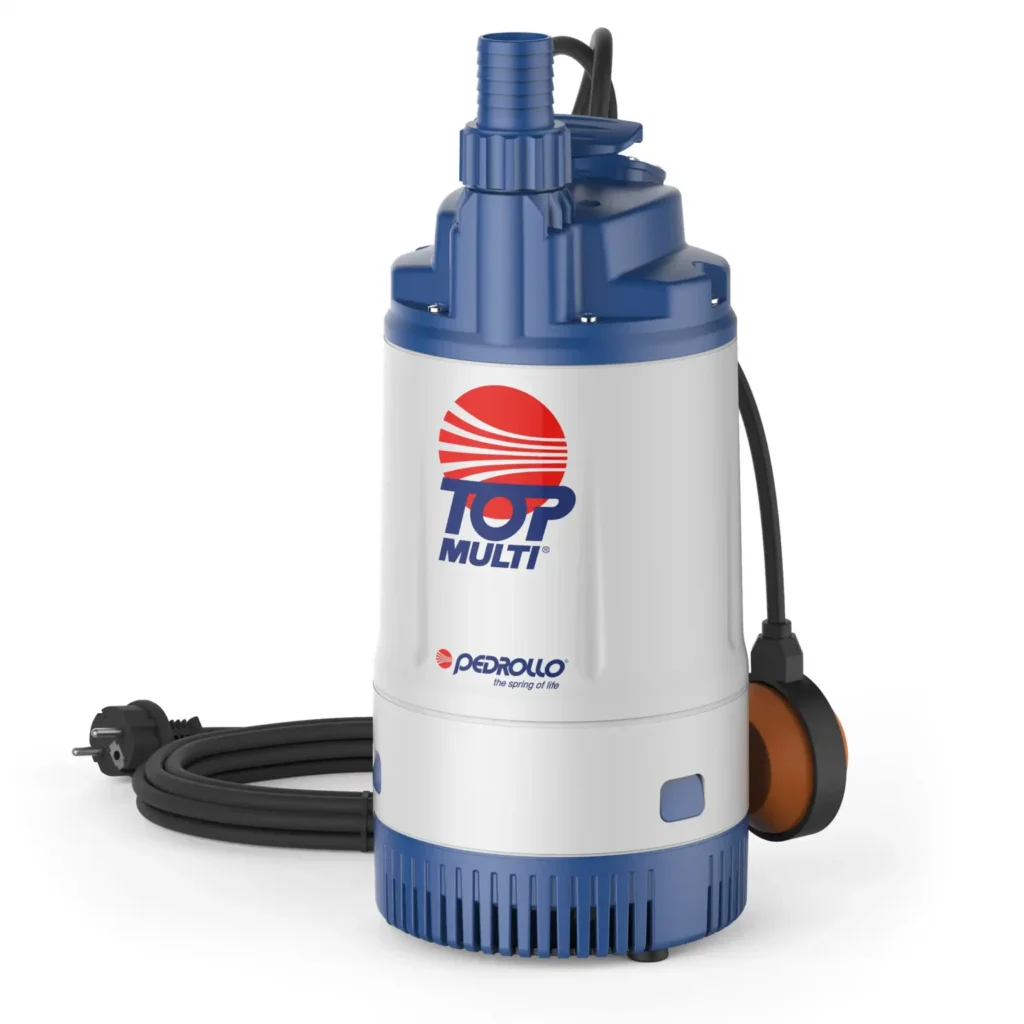

Fixed Speed Top Multi II
Designed to transfer clean water in domestic, agricultural, and civil settings. Optimal for tanks or reservoirs water supply and garden irrigation
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
BEST PRACTICE FOR WATER INFRASTRUCTURE
Ref: Uisce Éireann Regulations for Booster Units (CDS-5020-03)
Only indirect plumbing systems should be provided in internal water distributions systems i.e. all appliances shall be plumbed from a cold-water storage tank and supplied by gravity. The benefits of such indirect systems relate to ensuring that adequate storage capacity is available to serve all appliances within the Premises.
The plumbing and water storage requirements for premises should be in accordance with the current version of the Building Regulations and/or with the requirements of the relevant Local Authority’s Plumbing Regulations and Bye-Laws, if such exist. In many instances, the Local Authority will require arrangements to be made to have internal plumbing inspected and approved by a Local Authority representative. All Developments over two storeys in height or requiring a supply pressure greater than 15m head at the Curtilage of the property must comply with the requirements of Section 3.13 above. Specific agreement will be required from Uisce Éireann and the relevant Local Authority as necessary. As a general rule, storage of 24-hour maximum daily consumption should be provided. The minimum water storage requirement for commercial, industrial or manufacturing purposes shall be calculated on a 24-hour or maximum daily consumption basis. General guidelines for domestic premises are shown below in the following Table.
Tank Sizing Guides
Ref: Uisce Éireann Regulations for Booster Units (CDS-5020-03)
| Minimum cold water storage for new developments using low flush & dual flush WCs | |
|---|---|
| Dwelling house or apt. (up to 3 bed without power shower) | 227L |
| Dwelling house or apt. (4 bed or single power shower) | 340L |
| Dwelling house or apt. (having 2 full bathrooms) | 682L |
| Additional water storage per shower en-suite in the above | 90L |
*Please note: dishwashers, washing machines and other water using devices are included in the regulation, please ensure that appliance pressure and flow rates are as per manufacturer’s requirements.
Resources
Please note that we have a policy of continuous product development and specifications may change from those shown.
Contact us
Have questions about the Multiboost range?
Get in touch with our team.
- +353 (0) 12 3456 7890
- sales@epswater.com
Contact Form
WATER TREATMENT SYSTEMS
Our range of water treatment systems ensure that you not only increase your water pressure and flow but also the quality of your water.
WATER SOFTENERS
Used to prevent limescale and soften hard water. Improving the quality of your water.
ULTRAVIOLET SYSTEMS
If you need to purify water contaminated with harmful bacteria, utilising UV water treatment systems is one of the best ways to do it.
REVERSE OSMOSIS SYSTEMS
Reverse osmosis is one of the most effective methods of water purification for homes and businesses eliminating up to 99.8% contaminants
ANTI-SCALE SYSTEMS
Full house anti-scale protection. The unique media in ScaleArmor™ prevents the formation of limescale. Certified 86% scale prevention.
WHERE TO BUY
For details on where to purchase Multiboost Products please contact the EPS Office.
