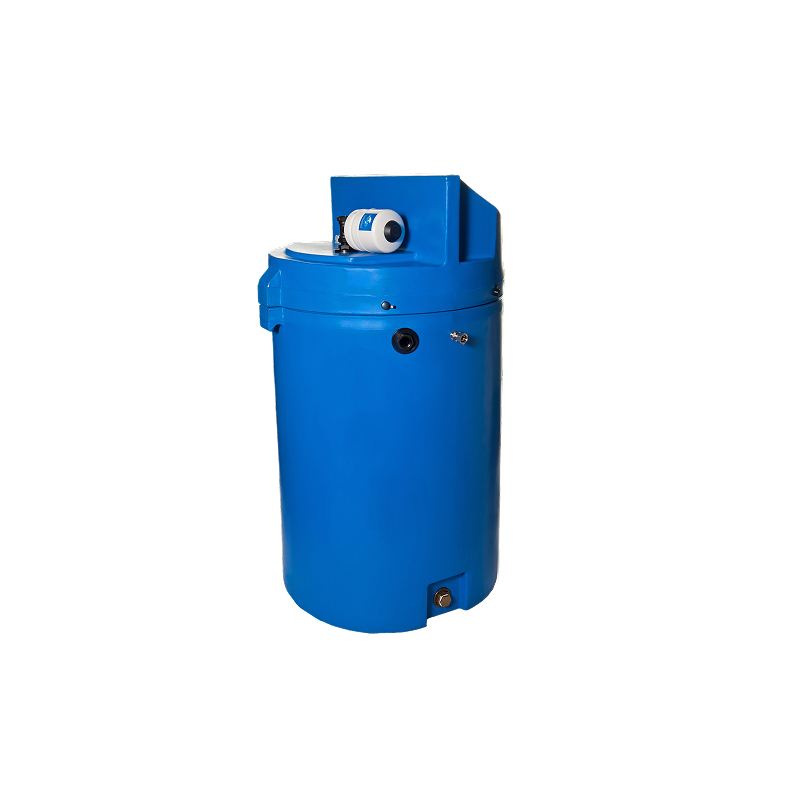

Multiboost
Bunded 650L
Capacity
650L
Pump Options
1 Pump
Speed
Fixed Speed
Control Options
Auto
Key Features
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Built-in electronic start/stop
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
Description
The Bunded range is specifically engineered for commercial environments where mains water pressure is low or subject to fluctuation.
Ideal for installations with ample floor space, this range provides a reliable and efficient water storage solution.
Each unit features a “tank within a tank” design, with the outer tank capable of holding at least 110% of the inner tank’s capacity, ensuring enhanced protection and regulatory compliance.
The inner tank serves as the primary storage vessel, while the outer tank acts as a fail-safe safeguard, containing any potential leaks or spills.
For ease of operation, the system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed—delivering consistent performance with minimal user intervention.
Ideal for installations with ample floor space, this range provides a reliable and efficient water storage solution.
Each unit features a “tank within a tank” design, with the outer tank capable of holding at least 110% of the inner tank’s capacity, ensuring enhanced protection and regulatory compliance.
The inner tank serves as the primary storage vessel, while the outer tank acts as a fail-safe safeguard, containing any potential leaks or spills.
For ease of operation, the system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed—delivering consistent performance with minimal user intervention.
Model Options
*The Multiboost Range can be found nation wide.
*Please note that we have a policy of continuous product development and specifications may change from those shown.
*Drip tray, insulation jacket and anti-vibration mat available on request
Bunded 650L Fixed Speed
Speed
Fixed Speed
Controller
Auto
Size
752 × 1174mm
Weight
94kg
Stock ID
1028680
View Model Datasheet
| Stock Code | Model | Control Type | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1028680 | Bunded 650L Fixed Speed | Auto | 752 | 1174 | 94 |
Not sure which one is for you?
Learn more on our pump controller comparison page ->
Technical Details
Pump Details
| Pump Option | kW | HP | A | Pressure | Bar 1 | Bar 2 | Bar 3 | Bar 4 | Bar 5 | Bar 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | Q 1/min | 73 | 57 | 40 | 10 | - | - |
System Connections
| Connection | Size |
|---|---|
| Inlet | 1/2" BSP |
| Outlet | 1" BSP |
| Overflow | 1" BSP |
| Drain Off / Gravity | 1" BSP |
Extra Information
| Power Supply | 240v 50Hz |
|---|---|
| Access Cover | Internal 190mm, External 285mm |
| Tank Weight | 1L = 1 kg plus weight of empty tank |
