Multiboost
Utility 250L
Capacity
250L
Pump Options
1 Pump
Speed
Fixed or Variable
Control Options
Easy Press, Presflo Multi, Steadypres
Key Features
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Dry-run protection with auto restart (time delay)
- Adjustable display flow controller (Variable Speed Option only)
- Equipped with drain off/gravity feed connect option
Description
The Utility range is designed for domestic and light commercial applications, particularly where mains water pressure is low or subject to fluctuation.
Ideal for installations where floor space is not restricted, this range offers a practical and adaptable solution.
With a wider selection of tank options, the Utility Range can accommodate a broad range of applications and system requirements.
The system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed – delivering reliable and efficient performance.
Ideal for installations where floor space is not restricted, this range offers a practical and adaptable solution.
With a wider selection of tank options, the Utility Range can accommodate a broad range of applications and system requirements.
The system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed – delivering reliable and efficient performance.
Model Options
*The Multiboost Range can be found nation wide.
*Please note that we have a policy of continuous product development and specifications may change from those shown.
*Drip tray, insulation jacket and anti-vibration mat available on request
Utility 250L Fixed Speed
Speed
Fixed Speed
Controller
Presflo Multi

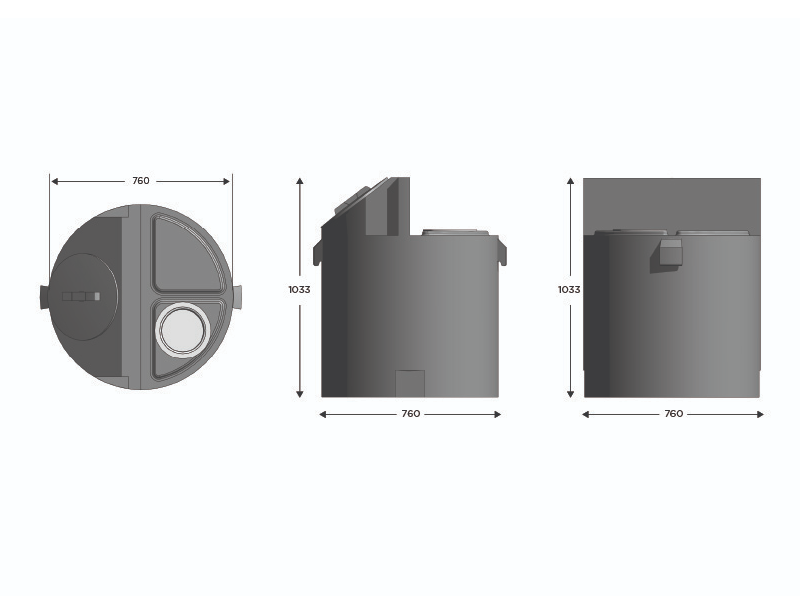

Size
760 × 1033
Weight
28kg
Stock ID
1194597
Utility 250L Fixed Speed
Speed
Fixed Speed
Controller
Easy Press
Size
760 × 1033
Weight
28kg
Stock ID
1001909
Utility 250L Variable Speed
Speed
Variable Speed
Controller
Steadypres
Size
760 × 1033
Weight
35kg
Stock ID
1012151
View Model Datasheet
| Stock Code | Model | Control Type | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1194597 | Utility 250L Fixed Speed | Easy Press | - | 760 | 1033 | 28 |
| 1001909 | Utility 250L Fixed Speed | Presflo Multi | - | 760 | 1033 | 28 |
| 1012151 | Utility 250L Variable Speed | SteadyPres | - | 760 | 1033 | 35 |
Not sure which one is for you?
Learn more on our pump controller comparison page ->
Technical Details
Pump Details
| Pump Option | kW | HP | A | Pressure | Bar 1 | Bar 2 | Bar 3 | Bar 4 | Bar 5 | Bar 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q 1/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q 1/min | 80 | 80 | 80 | 68 | 50 | 14 |
System Connections
| Connection | Size |
|---|---|
| Inlet | 1/2" BSP (3/4" Optional) |
| Outlet | 1" BSP |
| Overflow | 1" BSP |
| Drain Off / Gravity | 1" BSP |
Extra Information
| Power Supply | 240v 50Hz |
|---|---|
| Access Cover | 285mm |
| Tank Weight | 1L = 1 kg plus weight of empty tank |
