Multiboost
Utility Twin 1000L
Capacity
1000L
Pump Options
2 Pumps
Speed
Variable
Control Options
Steadypres x2
Key Features
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Adjustable pressure settings
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
Description
For applications requiring higher flow rates, the Multiboost can be configured with twin pumps to meet increased demand.
The Utility Twin is suited to large domestic and commercial applications, delivering performance of up to 160L/min at 3 bar. Twin pump sets are available for 450L, 750L and 1000L tank capacities, delivering enhanced system performance.
This configuration provides up to twice the flow at the same pressure, along with flexible operation options – allowing pumps to run in duty/standby mode or as two independent duty pumps (ideal for supplying separate circuits).
The Utility Twin is suited to large domestic and commercial applications, delivering performance of up to 160L/min at 3 bar. Twin pump sets are available for 450L, 750L and 1000L tank capacities, delivering enhanced system performance.
This configuration provides up to twice the flow at the same pressure, along with flexible operation options – allowing pumps to run in duty/standby mode or as two independent duty pumps (ideal for supplying separate circuits).
Interact with the Multiboost
Model Options
*The Multiboost Range can be found nation wide.
*Please note that we have a policy of continuous product development and specifications may change from those shown.
*Drip tray, insulation jacket and anti-vibration mat available on request
Utility Twin 1000L Twin VSD
Speed
Variable
Controller
SteadyPres x2

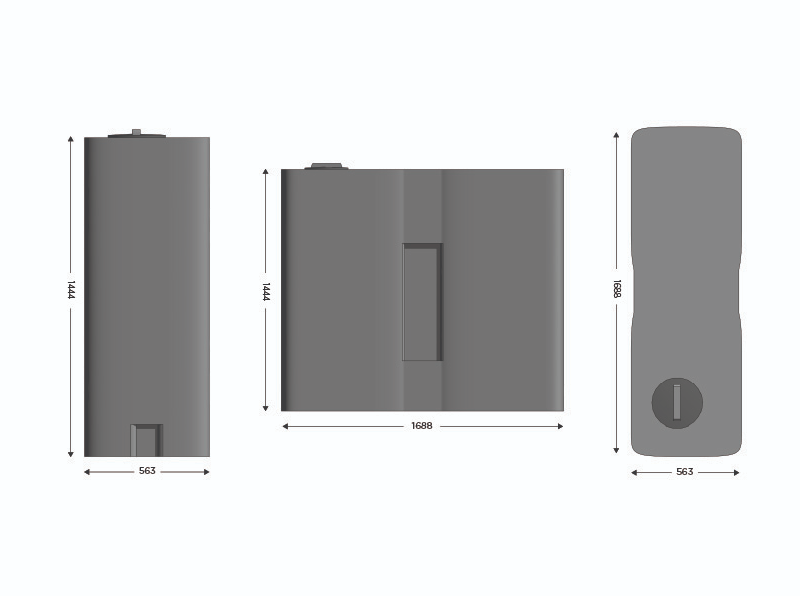

Size
1688 × 563 × 1660
Weight
90kg
Stock ID
1238648
View Model Datasheet
| Stock Code | Model | Control Type | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1238648 | Utility Twin 1000L Twin VSD | SteadyPres x 2 | 1688 | 563 | 1660 | 90 |
Not sure which one is for you?
Learn more on our pump controller comparison page ->
Technical Details
Pump Details
| Pump Option: NKM 2/4 6 | kW | HP | A | Pressure | Bar 1 | Bar 2 | Bar 3 | Bar 4 | Bar 5 | Bar 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Variable Speed (1 Pump) | 0.75 | 1 | 6.3 | Q 1/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Variable Speed (2 Pumps) | 1.5 | 2 | 12.6 | Q 1/min | 160 | 160 | 160 | 136 | 100 | 28 |
System Connections
| Connection | Size |
|---|---|
| Inlet | 1/2" BSP |
| Outlet | 1" BSP |
| Overflow | 1" BSP |
| Drain Off / Gravity | 1" BSP |
Extra Information
| Power Supply | 240v 50Hz |
|---|---|
| Access Cover | 285mm |
| Tank Weight | 1L = 1 kg plus weight of empty tank |
