Multiboost
Utility 1000L
Capacity
1000L
Pump Options
1 Pump
Speed
Fixed or Variable
Control Options
Easy Press, Presflo Multi, SteadyPres
Key Features
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Dry-run protection with auto restart (time delay)
- Adjustable display flow controller (Variable Speed Option only)
- Equipped with drain off/gravity feed connect option
Description
The Utility range is designed for domestic and light commercial applications, particularly where mains water pressure is low or subject to fluctuation.
Ideal for installations where floor space is not restricted, this range offers a practical and adaptable solution.
With a wider selection of tank options, the Utility Range can accommodate a broad range of applications and system requirements.
The system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed – delivering reliable and efficient performance.
Ideal for installations where floor space is not restricted, this range offers a practical and adaptable solution.
With a wider selection of tank options, the Utility Range can accommodate a broad range of applications and system requirements.
The system is electronically controlled, automatically starting and stopping the pump as outlets are opened and closed – delivering reliable and efficient performance.
Model Options
*The Multiboost Range can be found nation wide.
*Please note that we have a policy of continuous product development and specifications may change from those shown.
*Drip tray, insulation jacket and anti-vibration mat available on request
Utility 1000L Fixed Speed
Speed
Fixed Speed
Controller
Easy Press
Size
563 × 1640
Weight
73kg
Stock ID
1235744
Utility 1000L Fixed Speed
Speed
Fixed Speed
Controller
Presflo Multi
Size
1688 × 563 × 1640
Weight
74kg
Stock ID
1001925
Utility 1000L Variable Speed
Speed
Variable Speed
Controller
SteadyPres
Size
1688 × 563 × 1640
Weight
80kg
Stock ID
1012153
View Model Datasheet

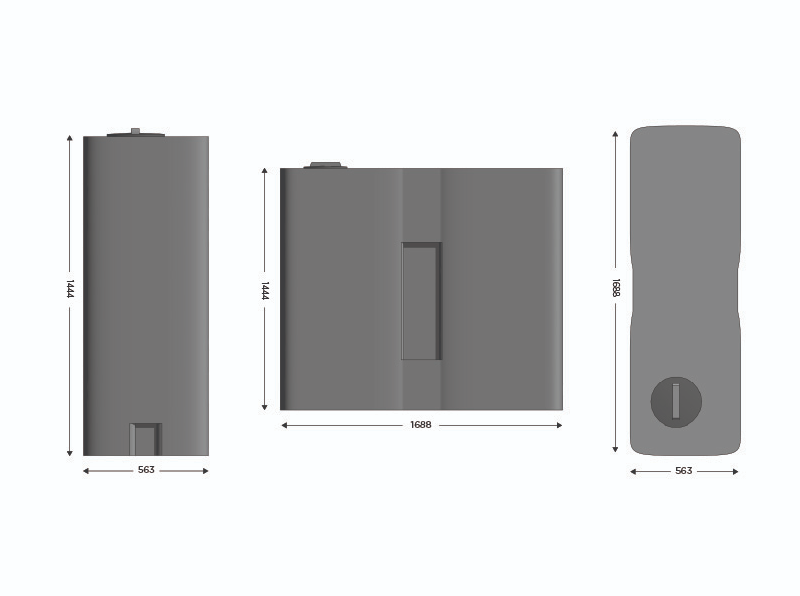

| Stock Code | Model | Control Type | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1235744 | Utility 1000L Fixed Speed | Easy Press | - | 563 | 1640 | 73 |
| 1001925 | Utility 1000L Fixed Speed | Presflo Multi | 1688 | 563 | 1640 | 74 |
| 1012153 | Utility 1000L Variable Speed | SteadyPres | 1688 | 563 | 1640 | 80 |
Not sure which one is for you?
Learn more on our pump controller comparison page ->
Technical Details
Pump Details
| Pump Option | kW | HP | A | Pressure | Bar 1 | Bar 2 | Bar 3 | Bar 4 | Bar 5 | Bar 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q 1/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q 1/min | 80 | 80 | 80 | 68 | 50 | 14 |
System Connections
| Connection | Size |
|---|---|
| Inlet | 1/2" BSP (3/4" Optional) |
| Outlet | 1" BSP |
| Overflow | 1" BSP |
| Drain Off / Gravity | 1" BSP |
Extra Information
| Power Supply | 240v 50Hz |
|---|---|
| Access Cover | 285mm |
| Tank Weight | 1L = 1 kg plus weight of empty tank |
