MULTIBOOST
RECTANGULAR

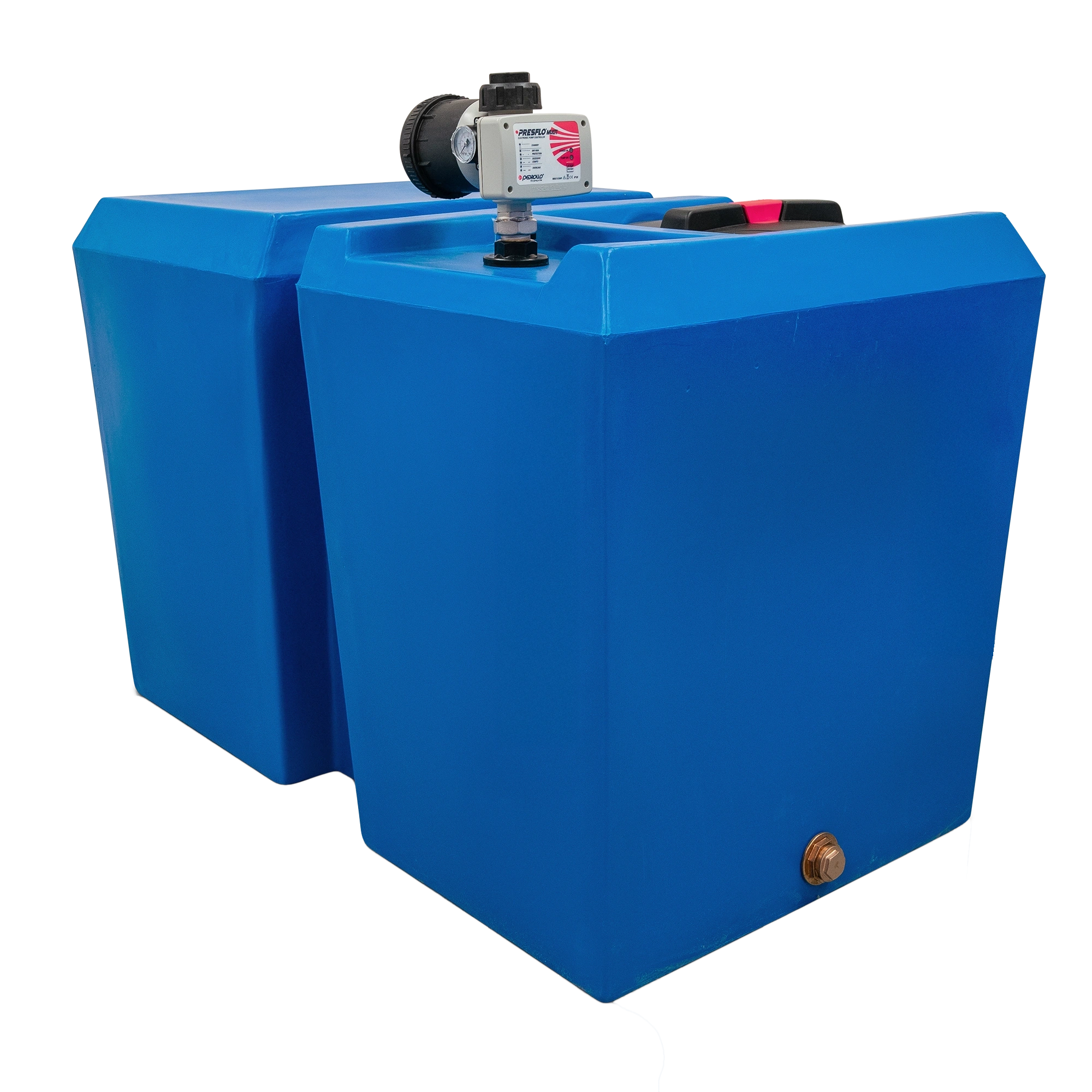

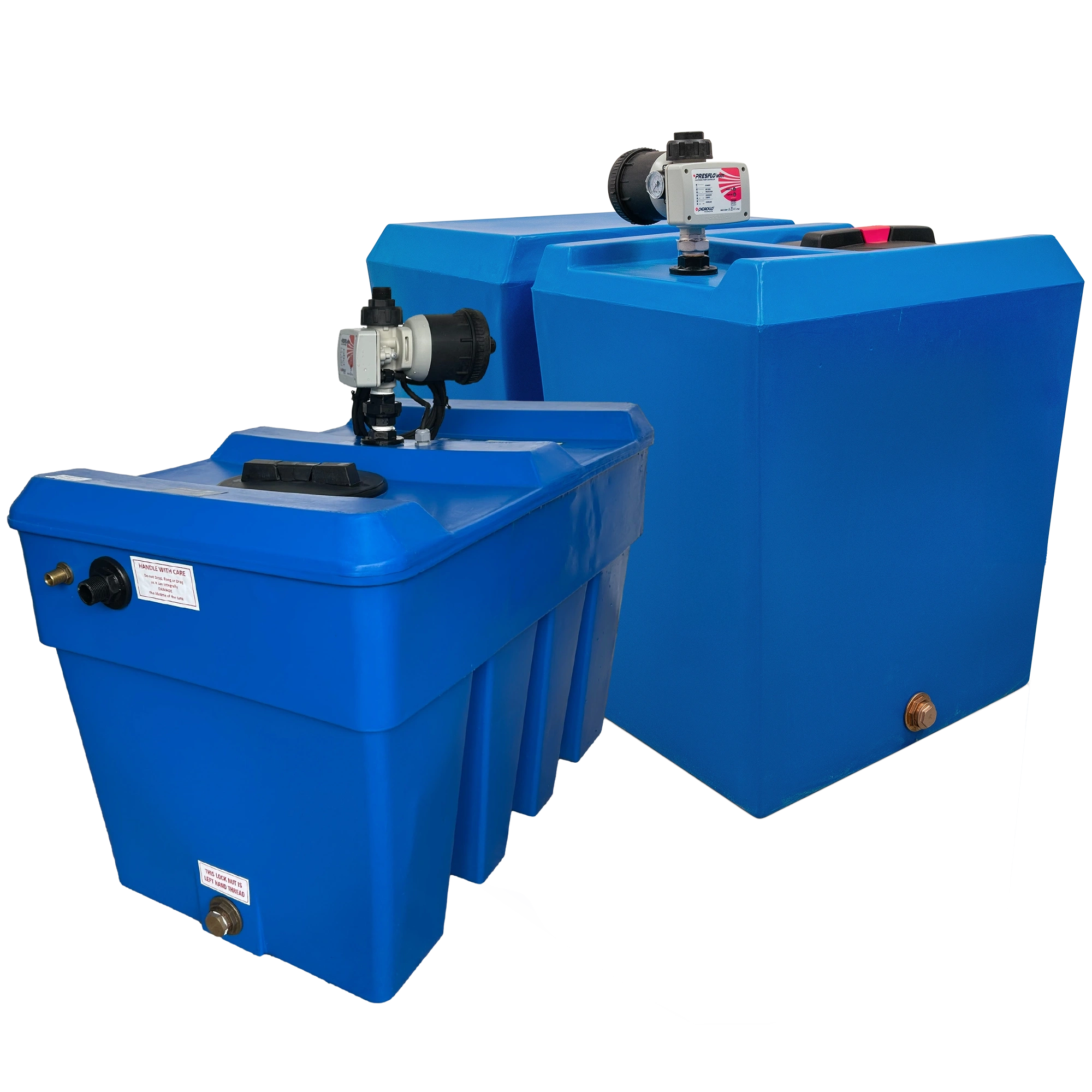

RECTANGULAR 300 & 500L
The Multiboost Rectangular range is designed for domestic and light commercial use where there is low mains water pressure and where pressure fluctuates.
It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed. The Multiboost Rectangular tanks are designed for areas where height restrictions and access are an issue.
RANGE OPTIONS
- 1033899 - 300L Rectangular Fixed Speed - Easy Press
- 1017488 - 300L Rectangular Fixed Speed - Multi
- 1033900 - 500L Rectangular Fixed Speed - Easy Press
- 1017490 - 500L Rectangular Fixed Speed - Multi
Fixed Speed (Easy Press)
Fixed Speed (Multi)
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 300L = 190mm | 500L = 285mm
- Inlet: 1/2” BSP
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
DIMENSIONS
- 1033899 - 300L Rectangular Fixed Speed - Easy Press - L: 1045mm W: 665mm H: 945mm Weight: 34kg
- 1017488 - 300L Rectangular Fixed Speed - Multi - L: 1045mm W: 665mm H: 960mm Weight: 34kg
- 1033900 - 500L Rectangular Fixed Speed - Easy Press - L: 1050mm W: 727mm H: 1117mm Weight: 40kg
- 1017490 - 500L Rectangular Fixed Speed - Multi - L: 1120mm W: 727mm H: 1050mm Weight: 40kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed Top Multi II | 0.55kW 0.75HP 3.4A | 73lpm @ 1 Bar | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed NKM 2/4 6-E | 0.75kW 1HP 6.3A | 80pm @ 1 Bar | 80pm @ 2 Bar | 80lpm @ 3 Bar | 68lpm @ 4 Bar | 50lpm @ 5 Bar | 14lpm @ 6 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
