MULTIBOOST
SLIMLINE

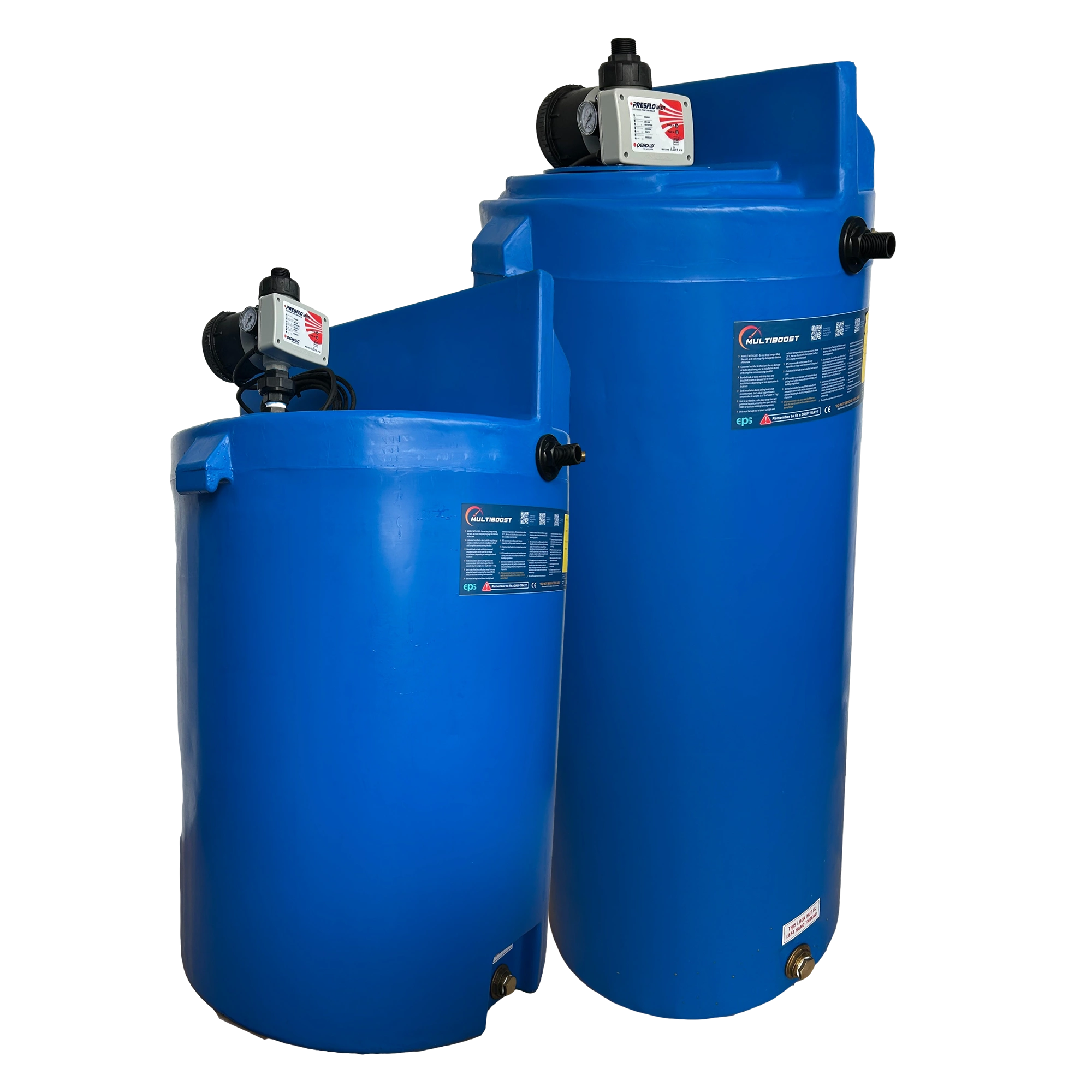

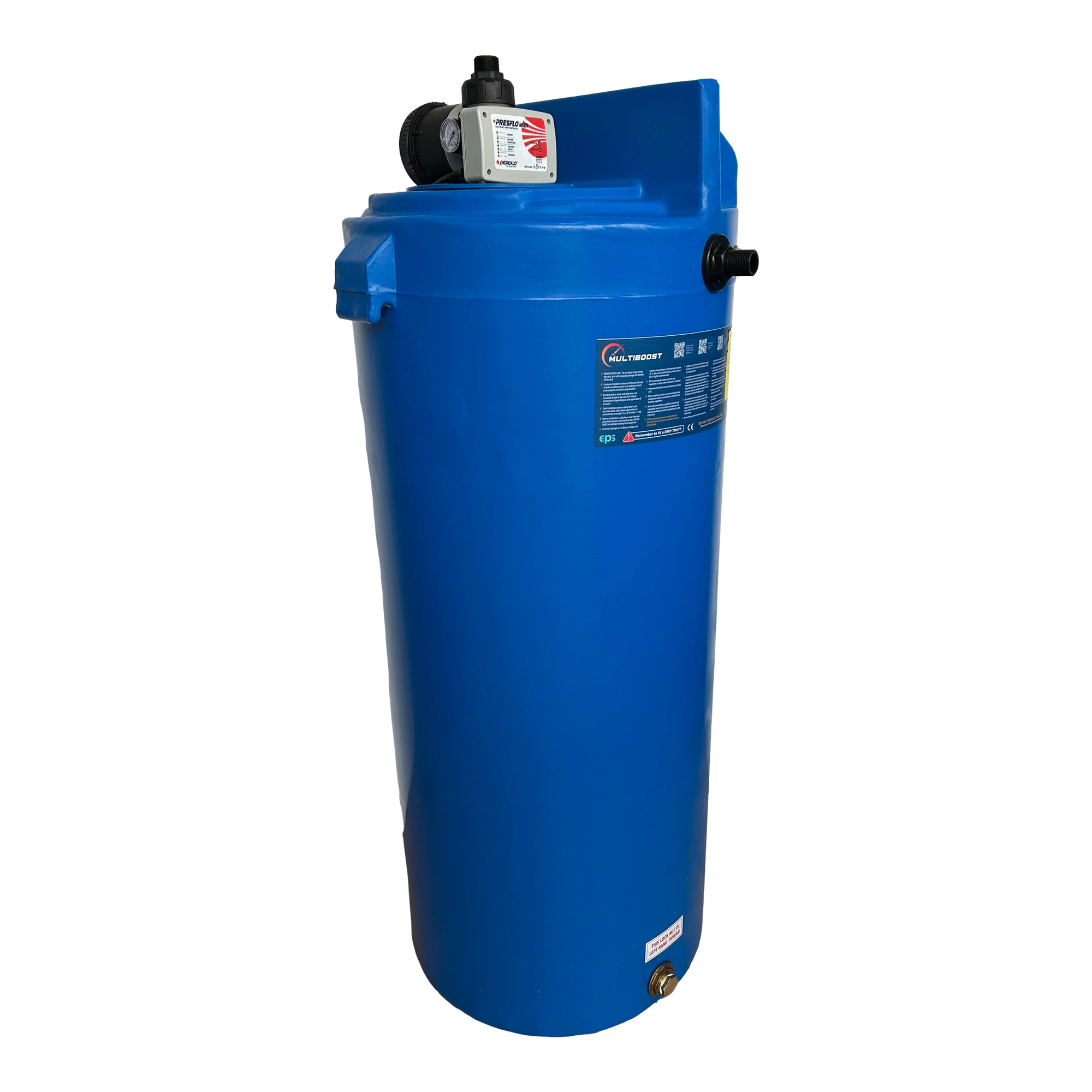

SLIMLINE 200, 350 & 440L
The Slimline range can fit through a standard doorway. This makes it very convenient for new or existing properties as it can be easily fitted under a stairs, in a garage, or in a utility room.
The Slimline range is ideal for 3 – 5 bedroom houses, with poor water pressure and flow and where floor space is limited. It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed.
RANGE OPTIONS
- 1012150 - 200L Slimline Fixed Speed - Multi
- 1020504 - 200L Slimline Variable Speed - Steadpres
- 1001909 - 250L Slimline Fixed Speed - Multi
- 1001906 - 350L Slimline Fixed Speed - Multi
- 1001905 - 350L Slimline Fixed Speed - Steadypres
- 1201022 - 440L Slimline Fixed Speed - Multi
- 1235417 - 440L Slimline Variable Speed - Steadypres

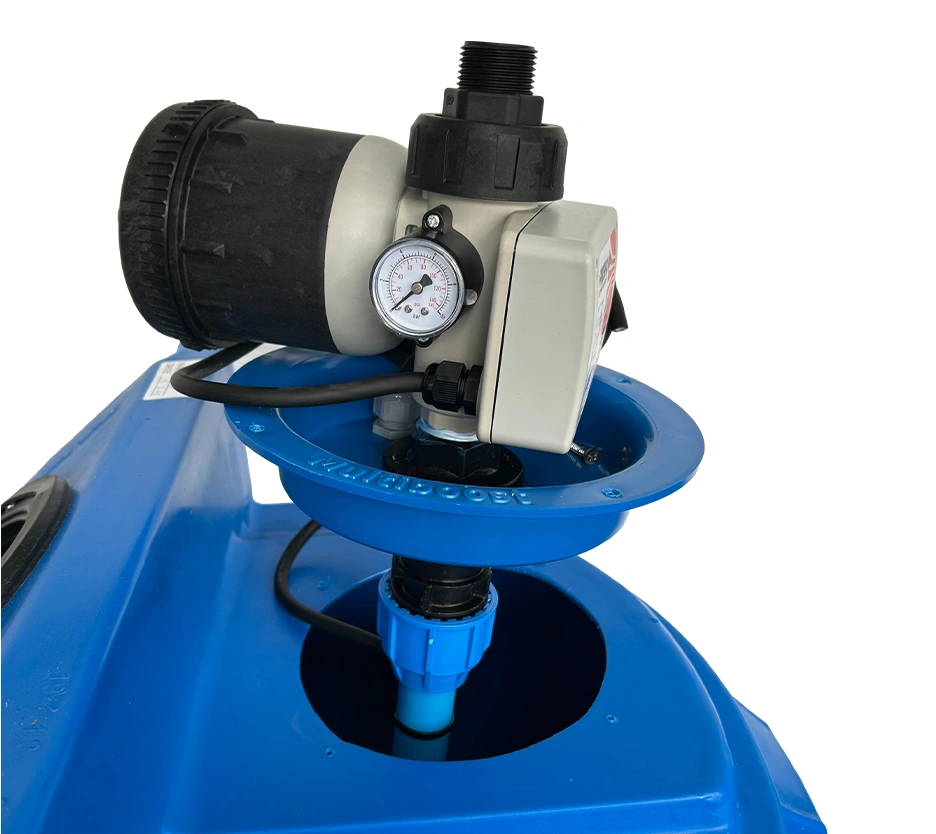

New Removable Pot Lid

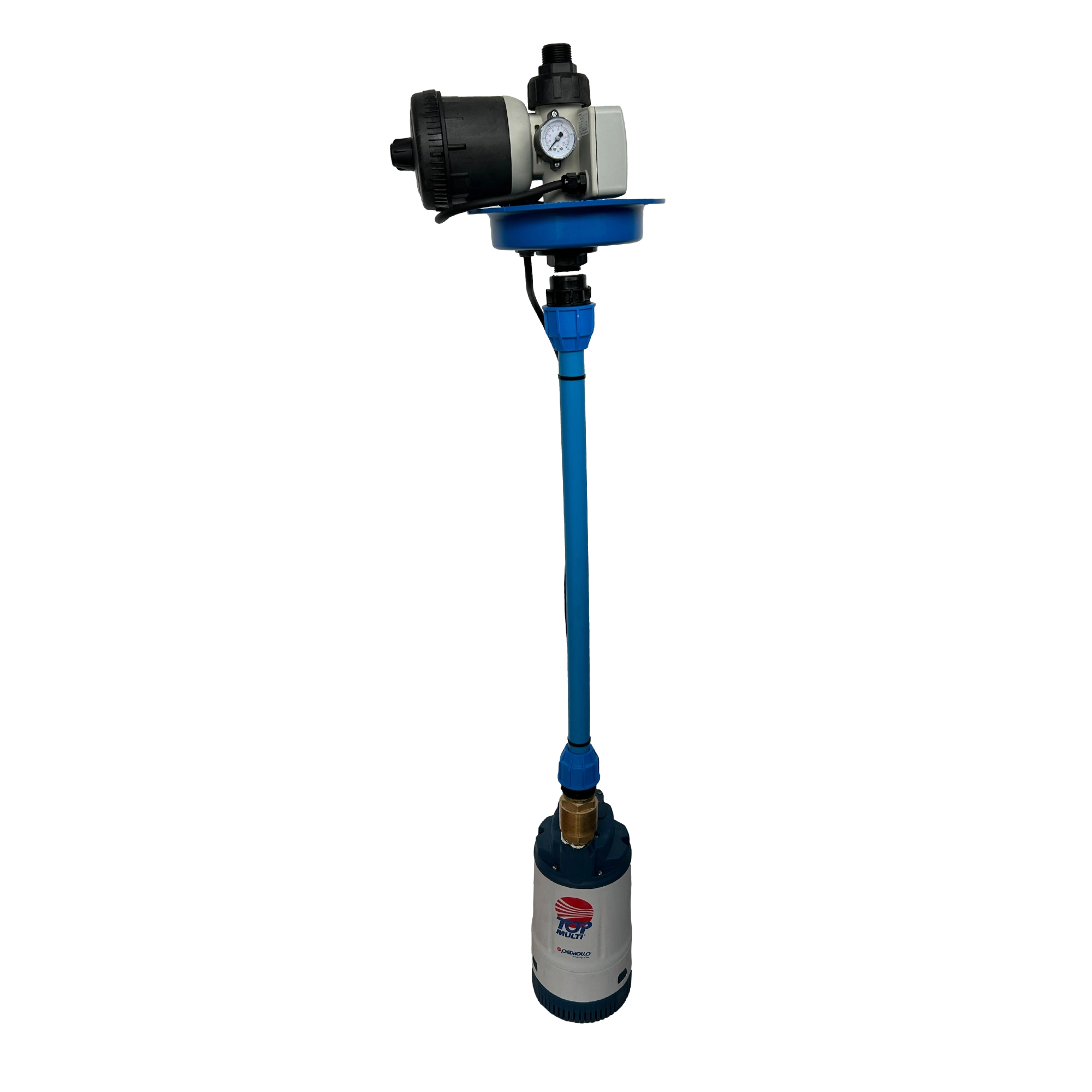

Fixed Speed (Multi)
Variable Speed Option
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Adjustable display flow controller (Variable Speed Option only)
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 190mm
- Inlet: 1/2” BSP
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
DIMENSIONS
- 1012150 - 200L Slimline Fixed Speed - Multi - L: 584mm W: 584mm H: 1190mm Weight: 26kg
- 1020504 - 200L Slimline Variable Speed - Steadpres - L: 584mm W: 584mm H: 1190mm Weight: 31kg
- 1001909 - 250L Slimline Fixed Speed - Multi - L: 760mm W: 760mm H: 1033mm Weight: 28kg
- 1001906 - 350L Slimline Fixed Speed - Multi - L: 584mm W: 584mm H: 1656mm Weight: 29kg
- 1001905 - 350L Slimline Fixed Speed - Steadypres - L: 584mm W: 584mm H: 1656mm Weight: 35kg
- 1201022 - 440L Slimline Fixed Speed - Multi - L: 584mm W: 584mm H: 1855mm Weight: 35kg
- 1235417 - 440L Slimline Variable Speed - Steadypres - L: 584mm W: 584mm H: 1855mm Weight: 35kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed Top Multi II | 0.55kW 0.75HP 3.4A | 73lpm @ 1 Bar | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed NKM 2/4 6-E | 0.75kW 1HP 6.3A | 80pm @ 1 Bar | 80pm @ 2 Bar | 80lpm @ 3 Bar | 68lpm @ 4 Bar | 50lpm @ 5 Bar | 14lpm @ 6 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
