MULTIBOOST
SOLAR
SOLAR 450 & 750L
The new Multiboost Solar unit is a highly efficient and flexible solar pumping system that is suitable for various applications.
This solution, harnesses the good quality light provided via a 420W PV panel to operate a Lorentz pump, motor and control unit, which can also be monitored via Bluetooth.
RANGE OPTIONS
- 1238677 - 450L Utility Solar - S1-200
- 1238678 - 750L Utility Solar - S1-200

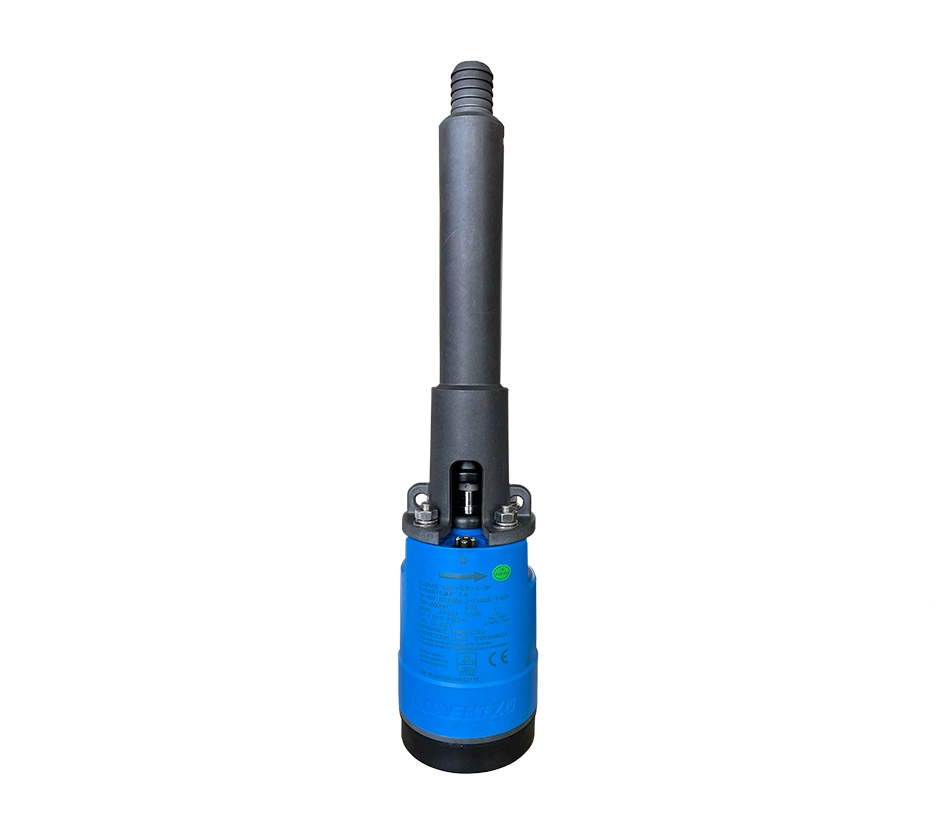

S1-200 Pump

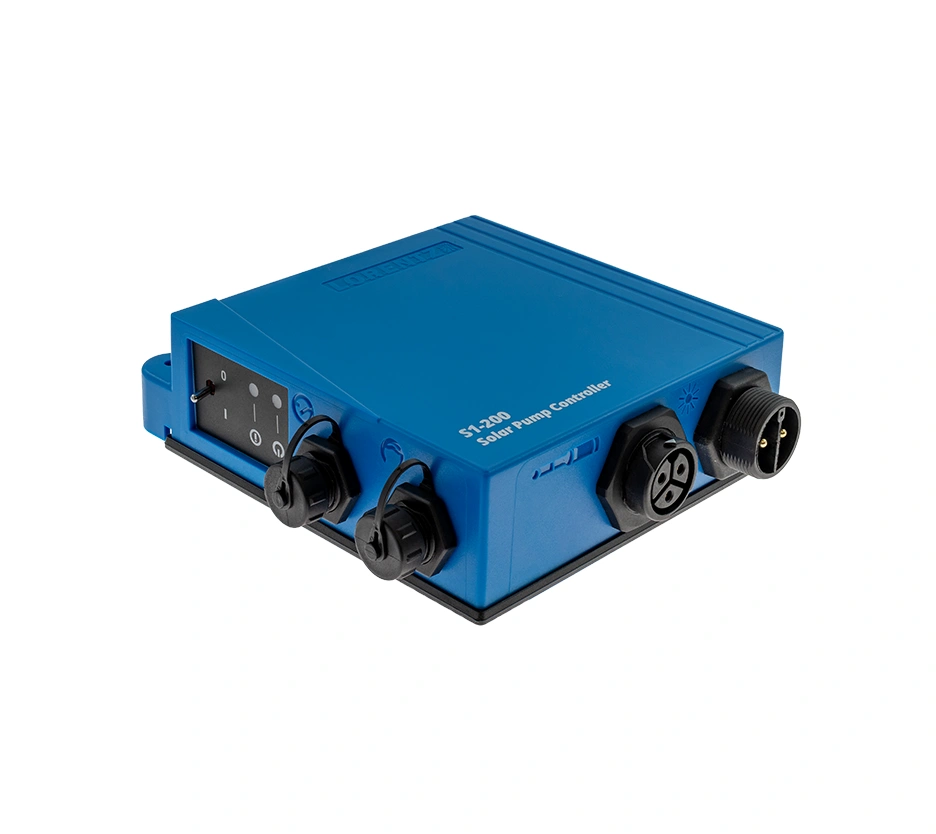

Control Unit

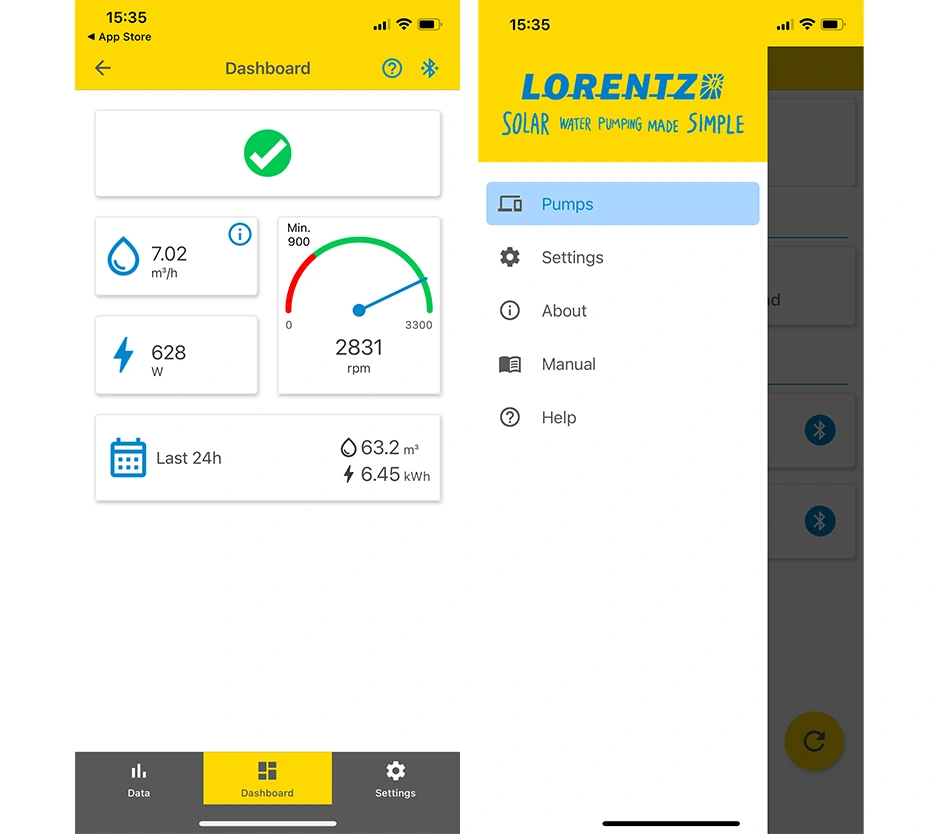

App Control and Monitoring
KEY FEATURES
- 100% solar powered, off-grid solution
- Quick and easy installation
- Dry-run protection as standard
- Bluetooth and app connectivity
- 30 day data history
- Non-corrosive holding tank (WRAS approved material)
- Multi-functionality can be increased through optional accessories
- Speed adjustable pump from 850RPM to 2500RPM
- Time option control function
- Daily usage amount function
- App control & monitoring
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 190mm,
- Inlet: 1/2” BSP
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
- Input Voltage - 55V DC
- Operating Voltage 16-55V DC
- Max Continuous Current 6 Amp
DIMENSIONS
- 1238677 - 450L Utility Solar - S1-200 - L: 760mm W: 760mm H: 1393mm Weight: 28kg
- 1238678 - 750L Utility Solar - S1-200 - L: 760mm W: 760mm H: 2113mm Weight: 40kg
| Pump Model SR-200 HR-7 | Month/M3 per day | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec | |
| 420W Panel, 39M Head, 40M Pipe Length | 0.8 | 2 | 3.1 | 4 | 4.2 | 4.2 | 4 | 3.9 | 3.5 | 2.1 | 1.3 | 0.5 |
| 420W Panel, 30M Head, 40M Pipe Length | 1.9 | 3.3 | 4.7 | 5.6 | 6.1 | 6 | 5.9 | 5.6 | 4.9 | 3.6 | 2.5 | 1.5 |
| 420W Panel, 20M Head, 40M Pipe Length | 3.5 | 4.6 | 6.1 | 7.4 | 7.7 | 8.1 | 8 | 7.4 | 6.3 | 5.6 | 4.1 | 3 |
| 420W Panel, 10M Head, 40M Pipe Length | 5 | 6.7 | 8.1 | 9 | 10 | 10 | 10 | 9.6 | 8.4 | 7 | 5.4 | 4.8 |
| Pump Model SR-200 HR-7 | 420W Panel, 39M Head, 40M Pipe Length | 420W Panel, 30M Head, 40M Pipe Length | 420W Panel, 20M Head, 40M Pipe Length | 420W Panel, 10M Head, 40M Pipe Length |
|---|---|---|---|---|
| Month/M3 per day | ||||
| Jan | 0.8 | 1.9 | 3.5 | 5 |
| Feb | 2 | 3.3 | 4.6 | 6.7 |
| Mar | 3.1 | 4.7 | 6.1 | 8.1 |
| Apr | 4 | 5.6 | 7.4 | 9 |
| May | 4.2 | 6.1 | 7.7 | 10 |
| Jun | 4.2 | 6 | 8.1 | 10 |
| Jul | 4 | 5.9 | 8 | 10 |
| Aug | 3.9 | 5.6 | 7.4 | 9.6 |
| Sep | 3.5 | 4.9 | 6.3 | 8.4 |
| Oct | 2.1 | 3.6 | 5.3 | 7 |
| Nov | 1.3 | 2.5 | 4.1 | 5.4 |
| Dec | 0.5 | 1.5 | 3 | 4.8 |
Please note that we have a policy of continuous product development and specifications may change from those shown.
