MULTIBOOST
UTILITY

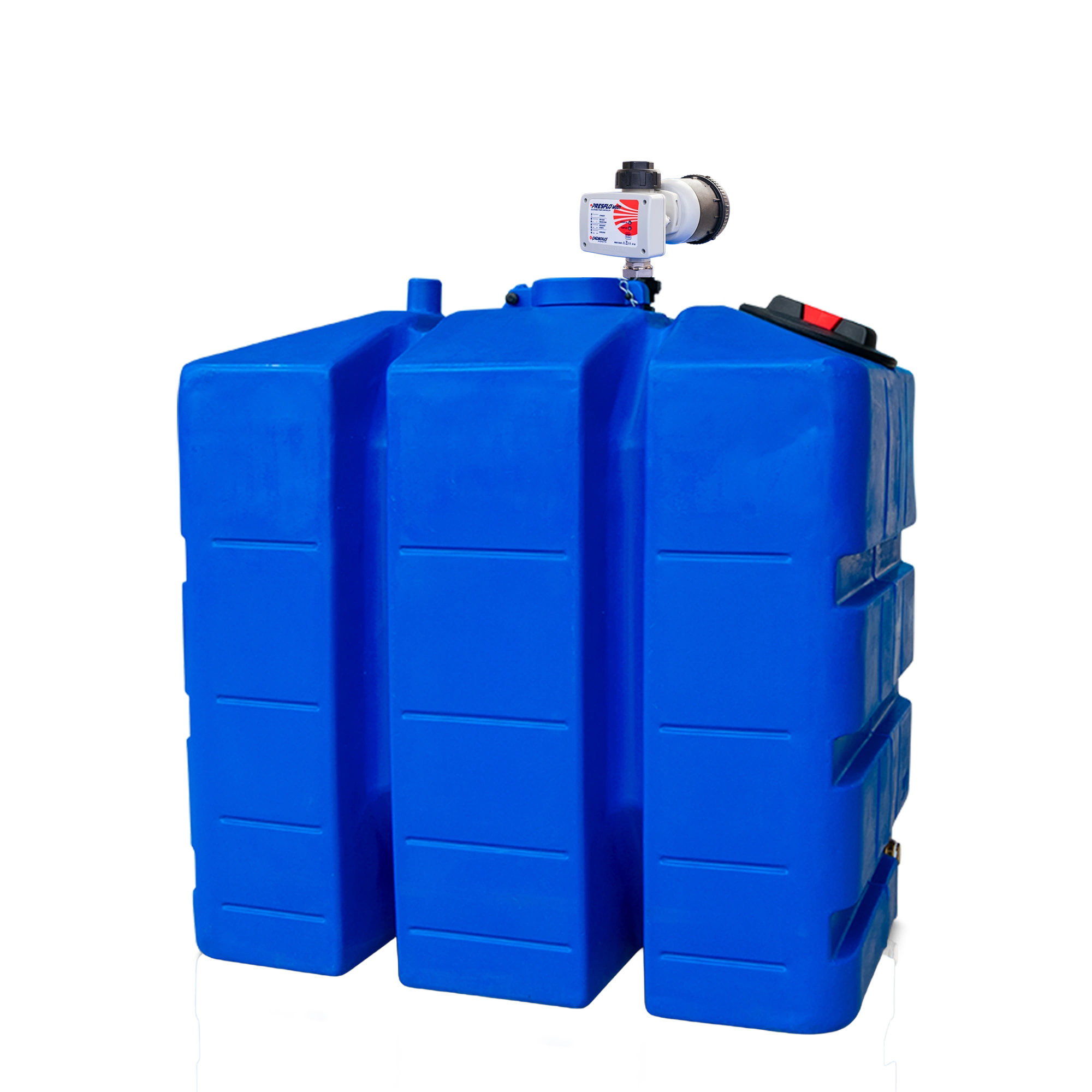

UTILITY 650 & 1000L
The Multiboost Utility range is designed for commercial use on a larger scale where there is low mains water pressure and where pressure fluctuates.
It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed. The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to suit a wider range of applications.
RANGE OPTIONS
- 1028679 - 650L Utility Fixed Speed - Multi
- 1075984 - 650L Utility Variable Speed- SteadyPress
- 1001925 - 1000L Utility Fixed Speed - Multi
- 1012153 - 1000L Utility Variable Speed - SteadyPress
Fixed Speed (Multi)
Variable Speed Option
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Adjustable display flow controller (Variable Speed Option only)
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 285mm
- Inlet: 1/2” BSP (3/4” Optional)
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
DIMENSIONS
- 1028679 - 650L Utility Fixed Speed - Multi - L: 1083mm W: 669mm H: 1283mm Weight: 54kg
- 1075984 - 650L Utility Variable Speed- SteadyPress - L: 1083mm W: 669mm H: 1283mm Weight: 60kg
- 1001925 - 1000L Utility Fixed Speed - Multi - L: 1688mm W:563mm H: 1640mm Weight: 74kg
- 1012153 - 1000L Utility Variable Speed - SteadyPress - L: 1688mm W: 563mm H: 1640mm Weight: 74kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed Top Multi II | 0.55kW 0.75HP 3.4A | 73lpm @ 1 Bar | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed NKM 2/4 6-E | 0.75kW 1HP 6.3A | 80pm @ 1 Bar | 80pm @ 2 Bar | 80lpm @ 3 Bar | 68lpm @ 4 Bar | 50lpm @ 5 Bar | 14lpm @ 6 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
WATER TREATMENT SYSTEMS
Our range of water treatment systems ensure that you not only increase your water pressure and flow but also the quality of your water.
WATER SOFTENERS
Used to prevent limescale and soften hard water. Improving the quality of your water.
ULTRAVIOLET SYSTEMS
If you need to purify water contaminated with harmful bacteria, utilising UV water treatment systems is one of the best ways to do it.
REVERSE OSMOSIS SYSTEMS
Reverse osmosis is one of the most effective methods of water purification for homes and businesses eliminating up to 99.8% contaminants
ANTI-SCALE SYSTEMS
Full house anti-scale protection. The unique media in ScaleArmor™ prevents the formation of limescale. Certified 86% scale prevention.
WHERE TO BUY
For details on where to purchase Multiboost Products please contact the EPS Office.
