MULTIBOOST
UTILITY TWIN

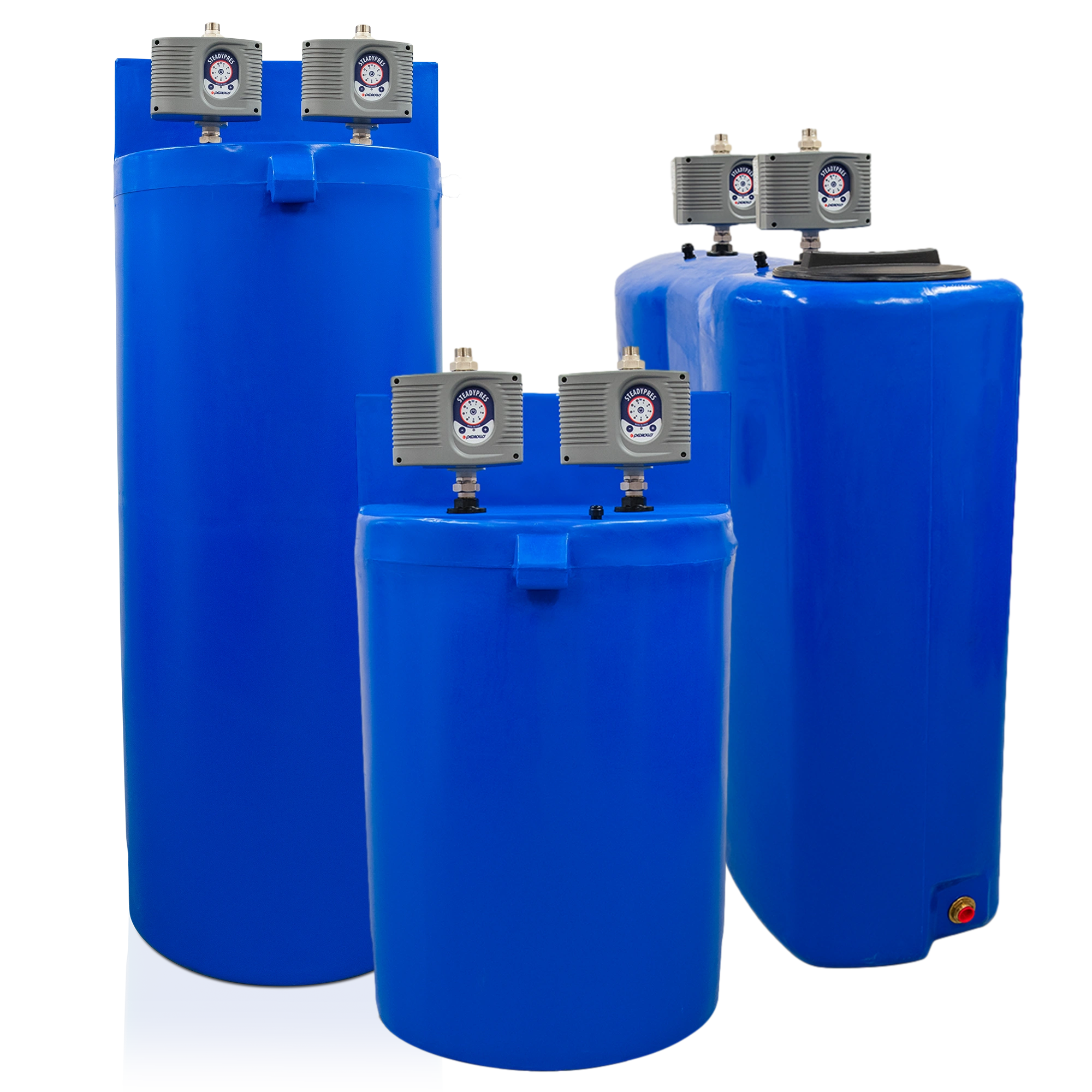

UTILITY TWIN 450, 750 & 1000L
For higher flow rates, the Multiboost can now be fitted with two pumps to meet the required duty. Twin pumps sets are configured for the 450, 750 and 1000L tank capacities.
This gives you twice the amount of flow at the same pressure, as well as an option to have the pumps running on duty/standby basis, or as 2 individual duty pumps (e.g. if you wanted to run 2 separate circuits).
As with the rest of the Multiboost range, the Utility Twin is designed for large domestic or commercial uses and operates at 160L/m @ 3 Bar.
RANGE OPTIONS
- 1238646 - 450L Utility Twin VSD - Steadypres *

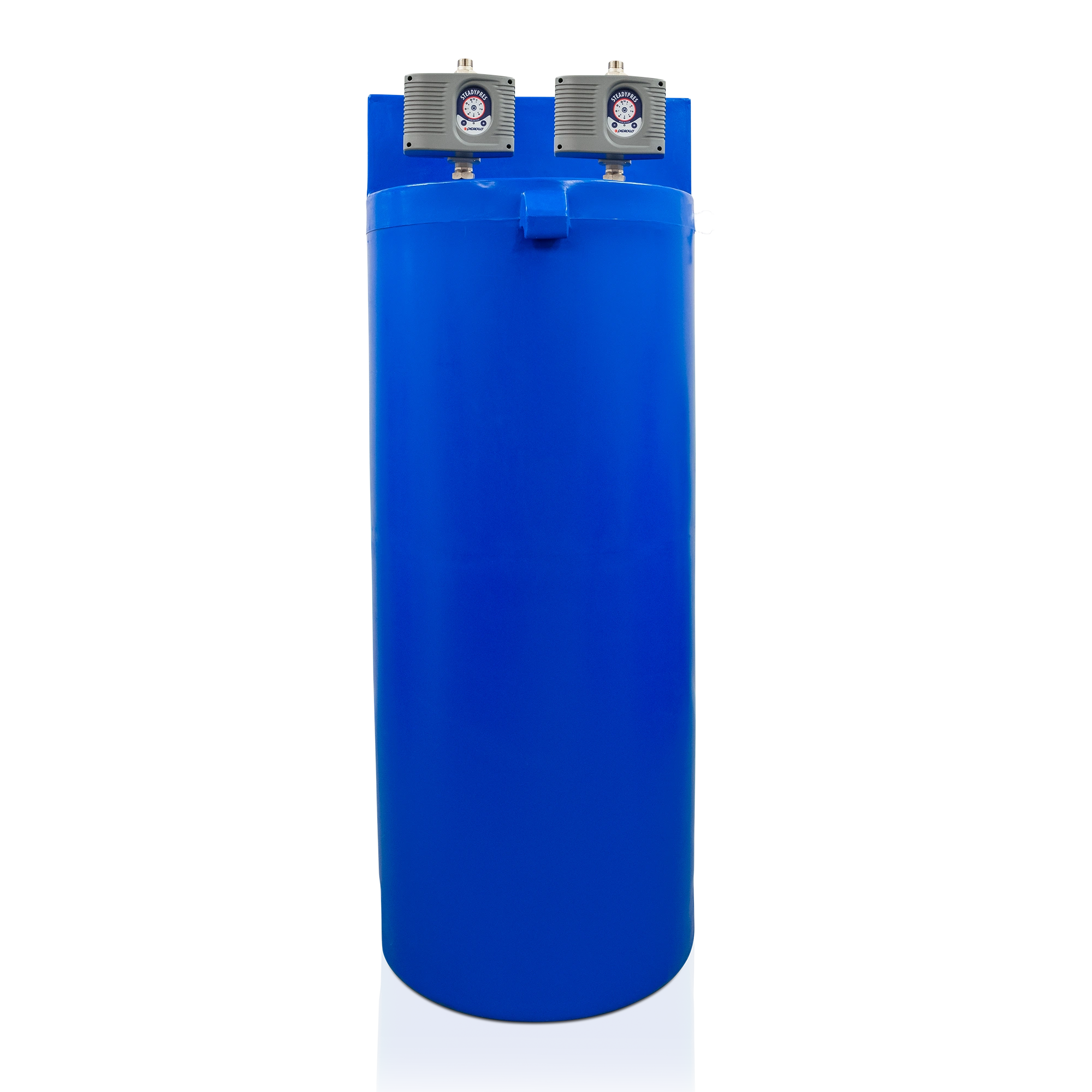

- 1238647 - 750L Utility Twin VSD - Stedypres *

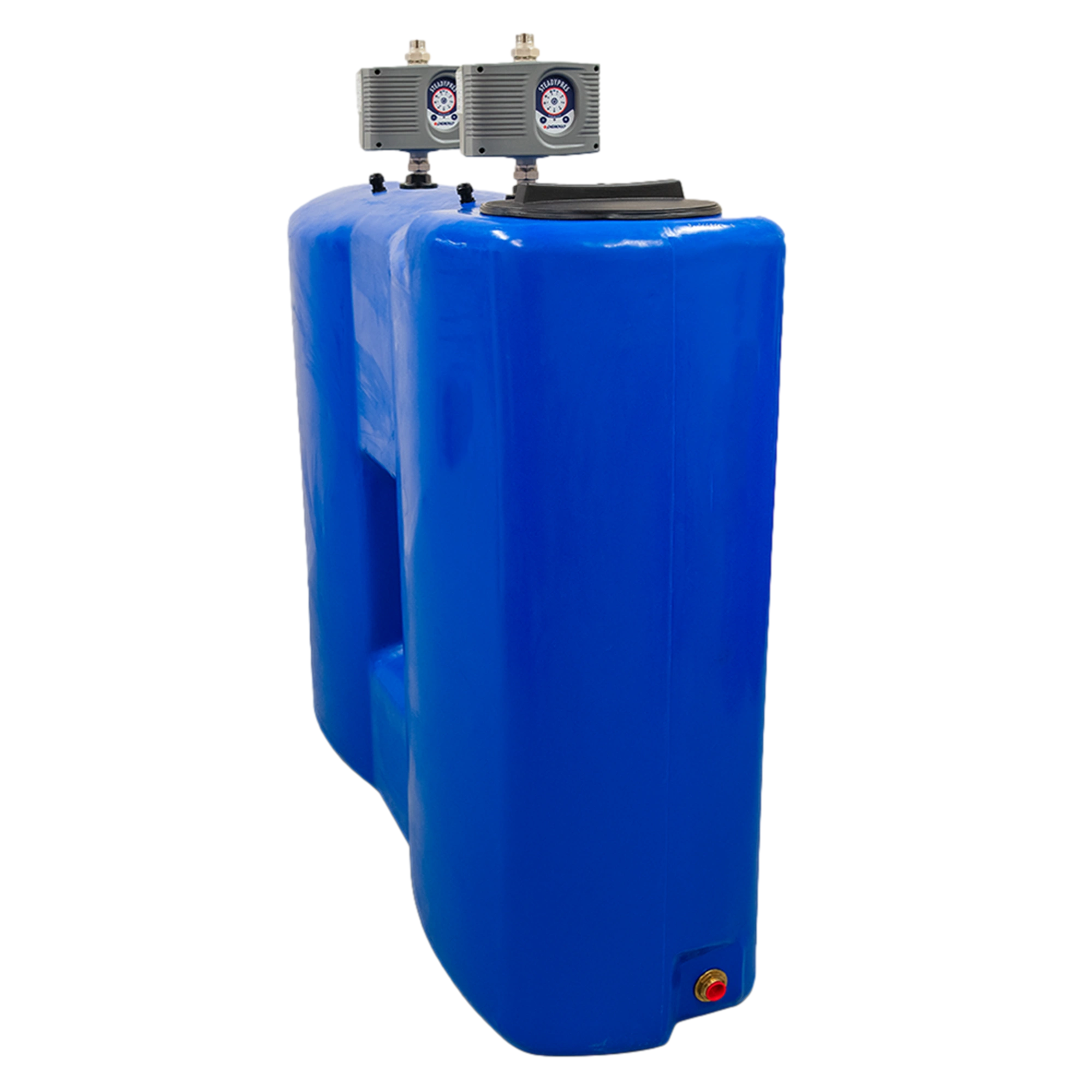

- 1238648 - 1000L Utility Twin VSD - Steadypres
*cover not included

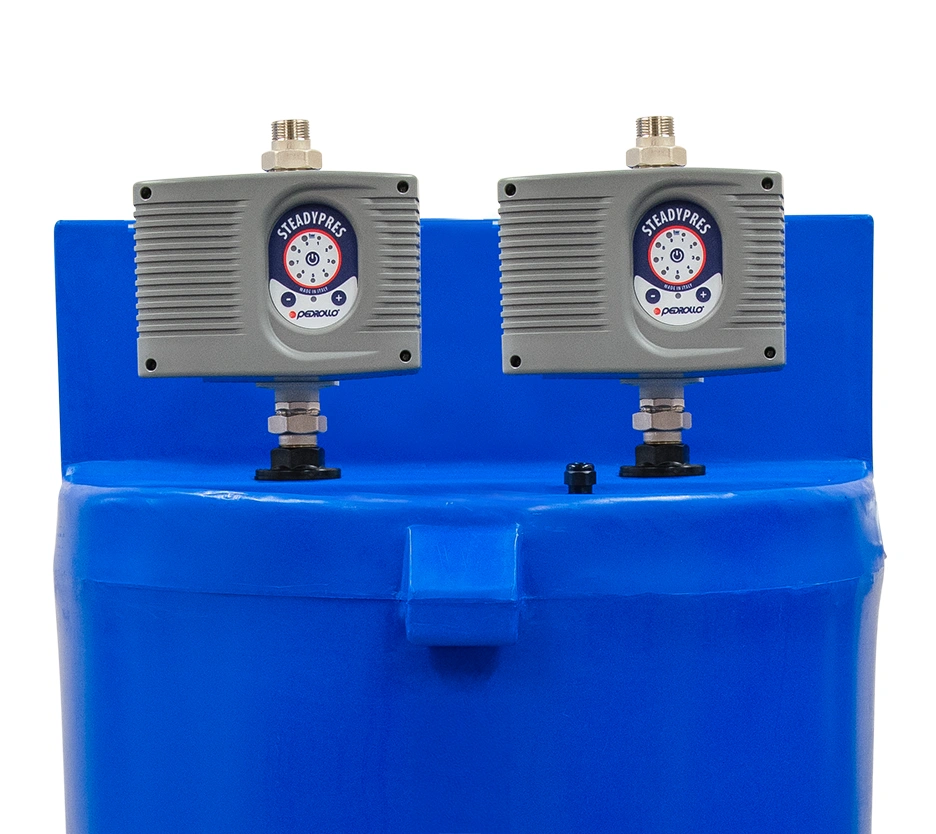

Twin Pump
Variable Speed Option
Twin Option
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Adjustable pressure settings
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 285mm
- Inlet: 1/2” BSP (3/4” Optional)
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
DIMENSIONS
- 1238646 - 450L Utility Twin VSD - Steadypres - L: 760mm W: 760mm H: 1413mm Weight: 60kg
- 1238647 - 750L Utility Twin VSD - Stedypres - L: 760mm W: 760mm H: 2133mm Weight: 72kg
- 1238648 - 1000L Utility Twin VSD - Steadypres - L: 1688mm W: 563mm H: 1660mm Weight: 90kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Variable Speed | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Variable Speed Twin | 1.5 | 2 | 12.6 | 160 | 160 | 160 | 136 | 100 | 28 |
| Pump Option | Power | Performance |
|---|---|---|
| Variable Speed | 0.75kW 1HP 6.3A | 80lpm @ 1 Bar | 80lpm @ 2 Bar | 80lpm @ 3 Bar | 68lpm @ 4 Bar | 50lpm @ 5 Bar | 14lpm @ 6 Bar |
| Variable Speed Twin | 1.5kW 2HP 12.6A | 160lpm @ 1 Bar | 160lpm @ 2 Bar | 160lpm @ 3 Bar | 136lpm @ 4 Bar | 50lmp @ 5 Bar | 28lpm @ 6 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
