MULTIBOOST
UTILITY

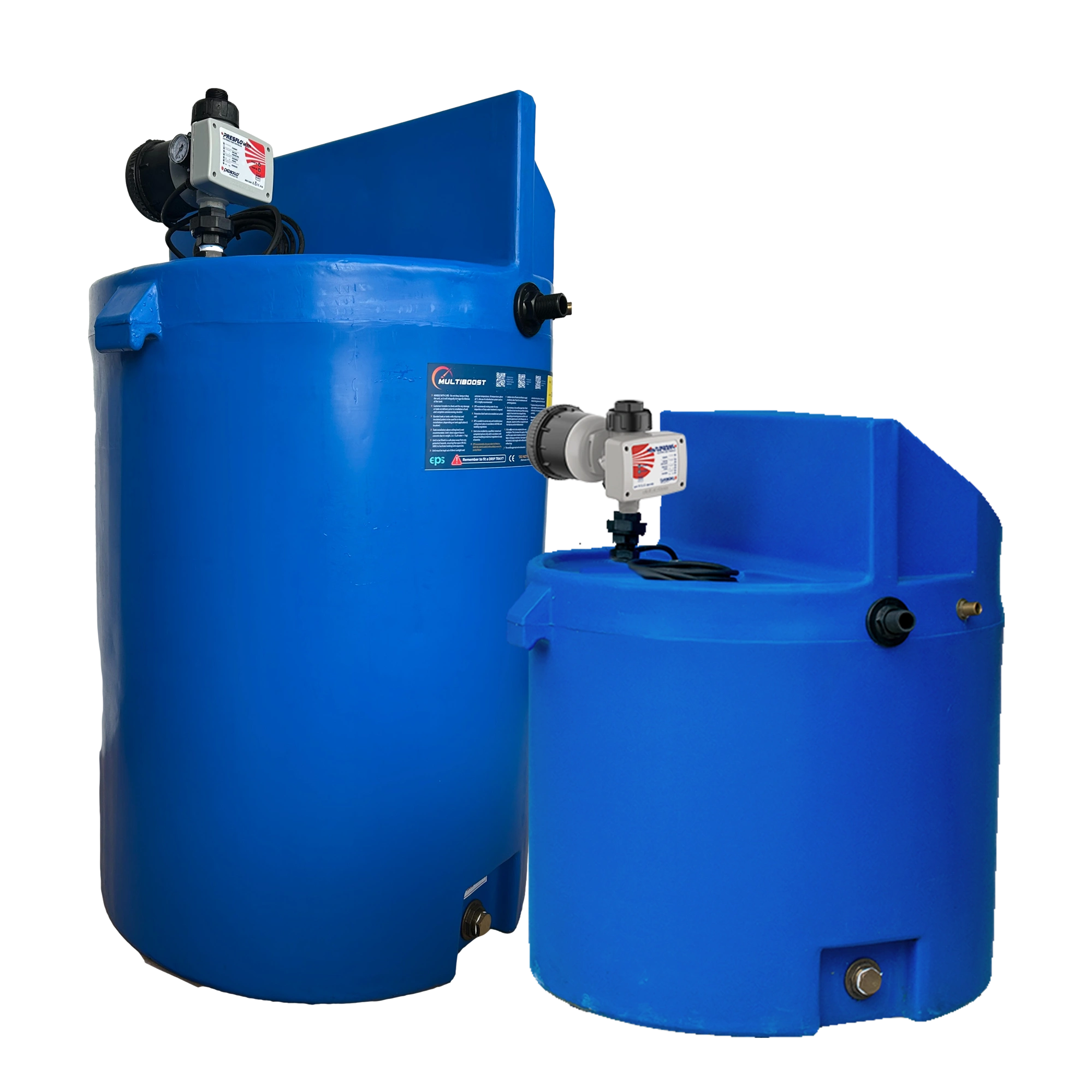

UTILITY 250, 450 & 750L
The Multiboost Utility range is designed for domestic and light commercial use where there is low mains water pressure and where pressure fluctuates.
The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to suit a wider range of applications. It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed.
RANGE OPTIONS
- 1001909 - 250L Utility Fixed Speed - Multi
- 1012151 - 250L Utility Variable Speed - SteadyPress
- 1001911 - 450L Utility Fixed Speed - Multi
- 1001912 - 450L Utility Variable Speed - SteadyPress
- 1001916 - 750L Utility Fixed Speed - Multi
- 1012152 - 750L Utility Variable Speed - SteadyPress

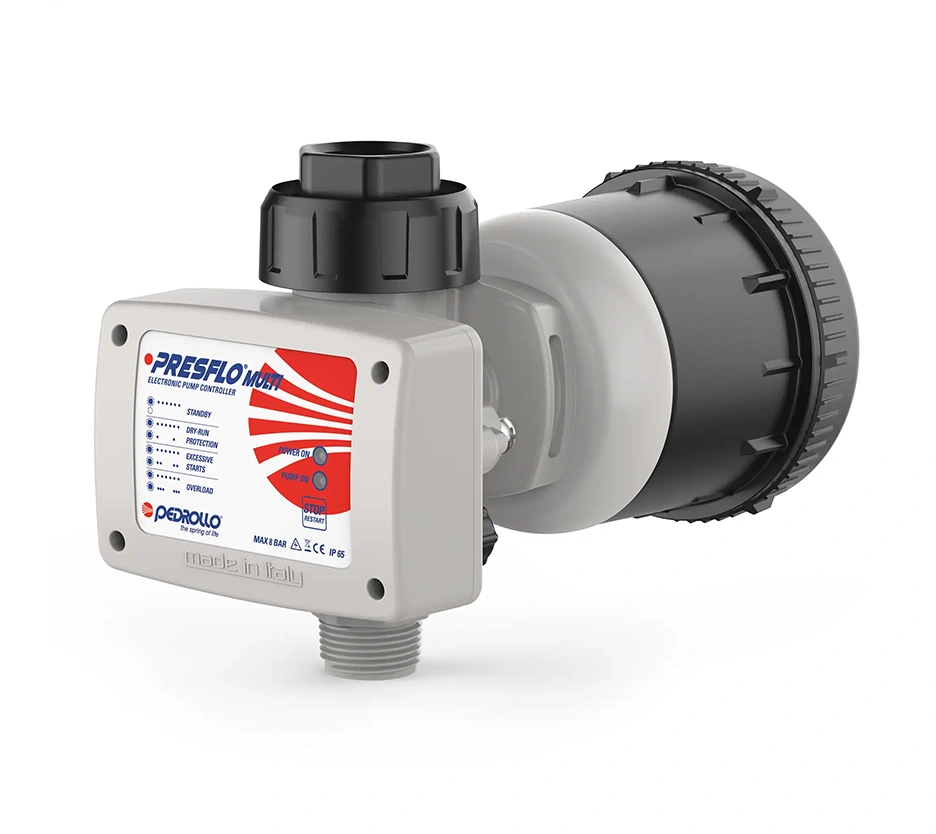

Fixed Speed (Multi)

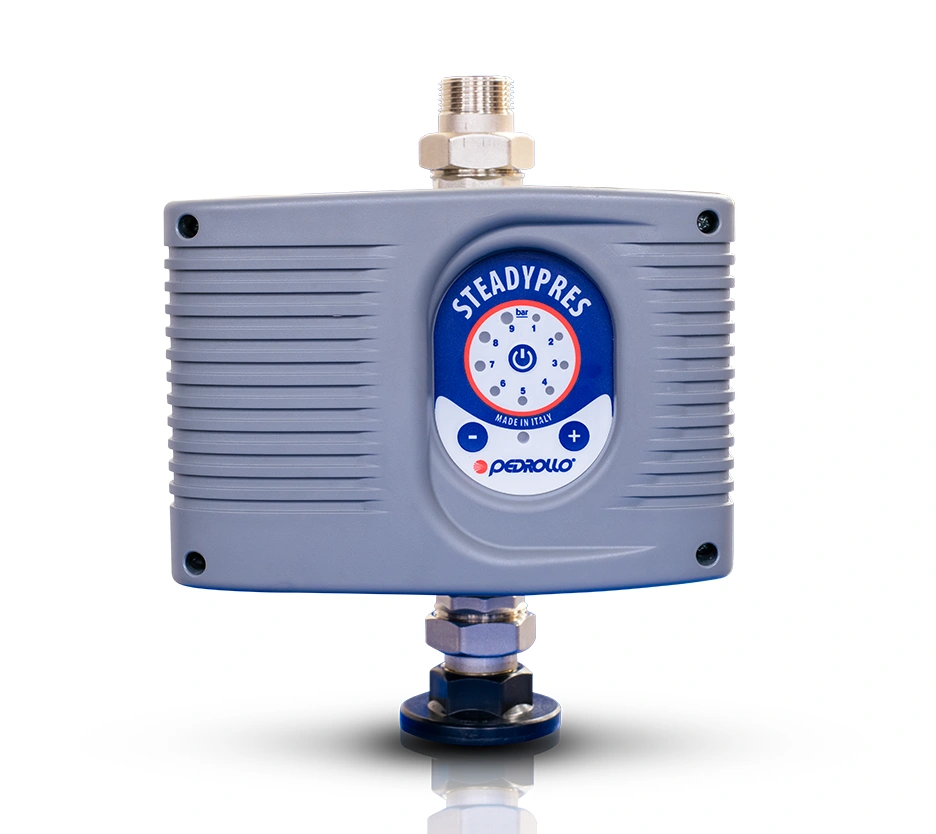

Variable Speed Option
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted fill valve
- Minimal installation requirement
- Adjustable display flow controller (Variable Speed Option only)
- Dry-run protection with auto restart (time delay)
- Equipped with drain off/gravity feed connect option
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Access Cover: 285mm
- Inlet: 1/2” BSP (3/4” Optional)
- Outlet: 1” BSP
- Overflow: 1" BSP
- Drain Off/Gravity: 1” BSP
DIMENSIONS
- 1001909 - 250L Utility Fixed Speed - Multi - L: 760mm W: 760mm H: 1033mm Weight: 28kg
- 1012151 - 250L Utility Variable Speed - SteadyPress - L: 760mm W: 760mm H: 1033mm Weight: 35kg

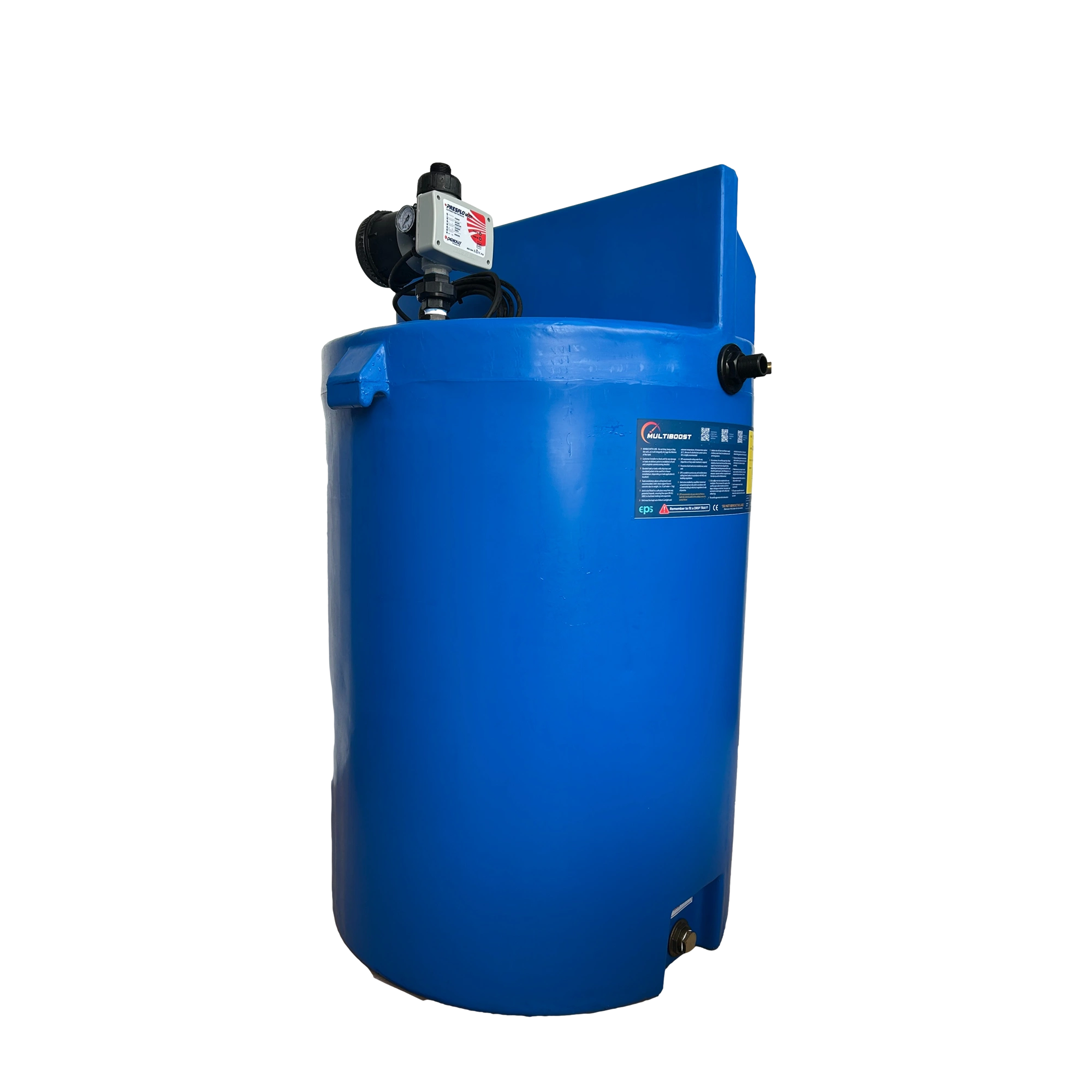

- 1001911 - 450L Utility Fixed Speed - Multi - L: 760mm W: 760mm H: 1393mm Weight: 34kg
- 1001912 - 450L Utility Variable Speed - SteadyPress - L: 760mm W: 760mm H: 1393mm Weight: 40kg

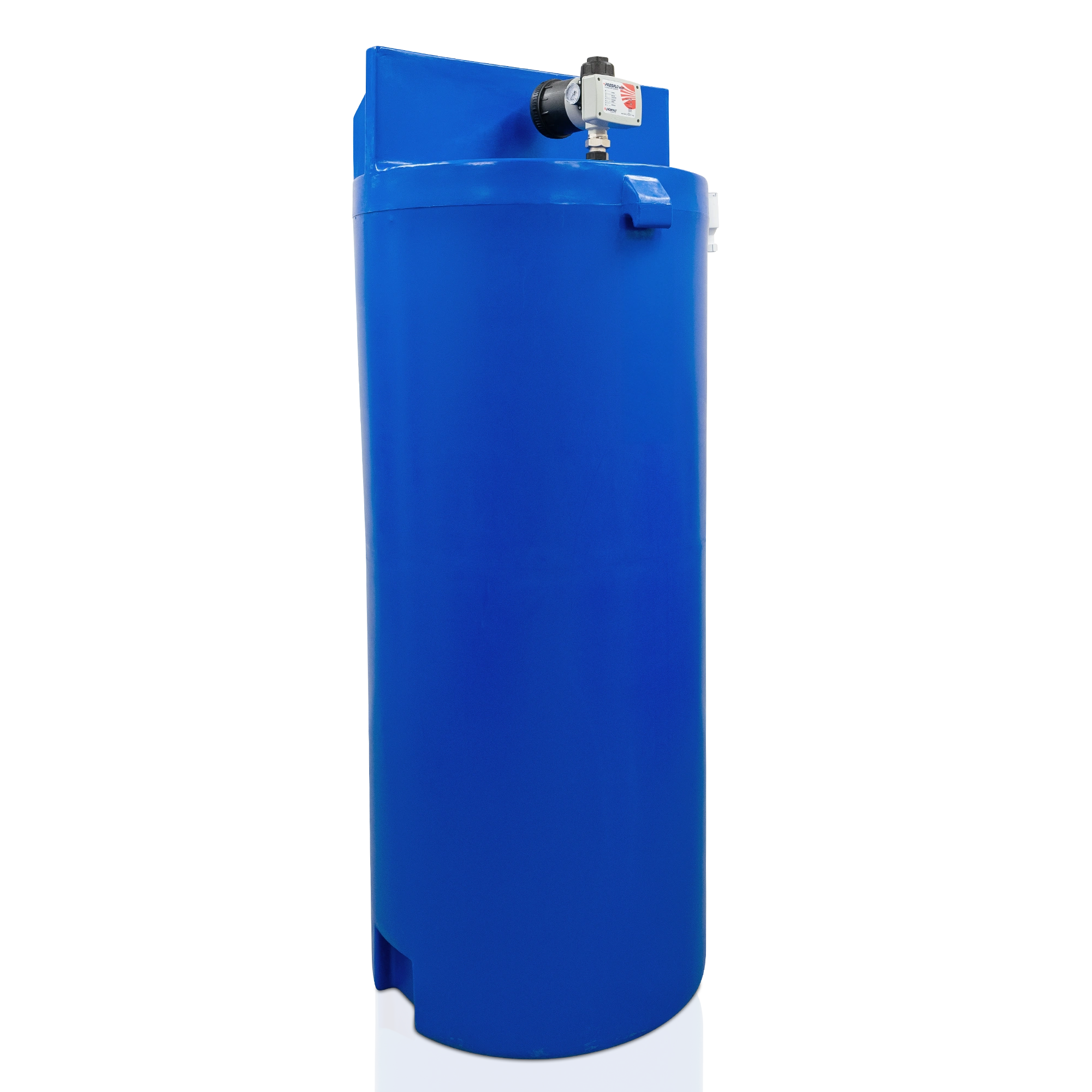

- 1001916 - 750L Utility Fixed Speed - Multi - L: 760mm W:760mm H: 2113mm Weight: 49kg
- 1012152 - 750L Utility Variable Speed - SteadyPress - L: 760mm W: 760mm H: 2113mm Weight: 55kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed Top Multi II | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed NKM 2/4 6-E | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed Top Multi II | 0.55kW 0.75HP 3.4A | 73lpm @ 1 Bar | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed NKM 2/4 6-E | 0.75kW 1HP 6.3A | 80pm @ 1 Bar | 80pm @ 2 Bar | 80lpm @ 3 Bar | 68lpm @ 4 Bar | 50lpm @ 5 Bar | 14lpm @ 6 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
