POWERTANK CAT5
CAT5 10 OR 38LTR
The Powertank CAT 5 provides backflow protection for fluid
category 5 risks. Our system includes a type AB air-gap and is
available with either a 10ltr or 38ltr tank. We supply this tank
with a self-priming jet pump to ensure smooth operation.

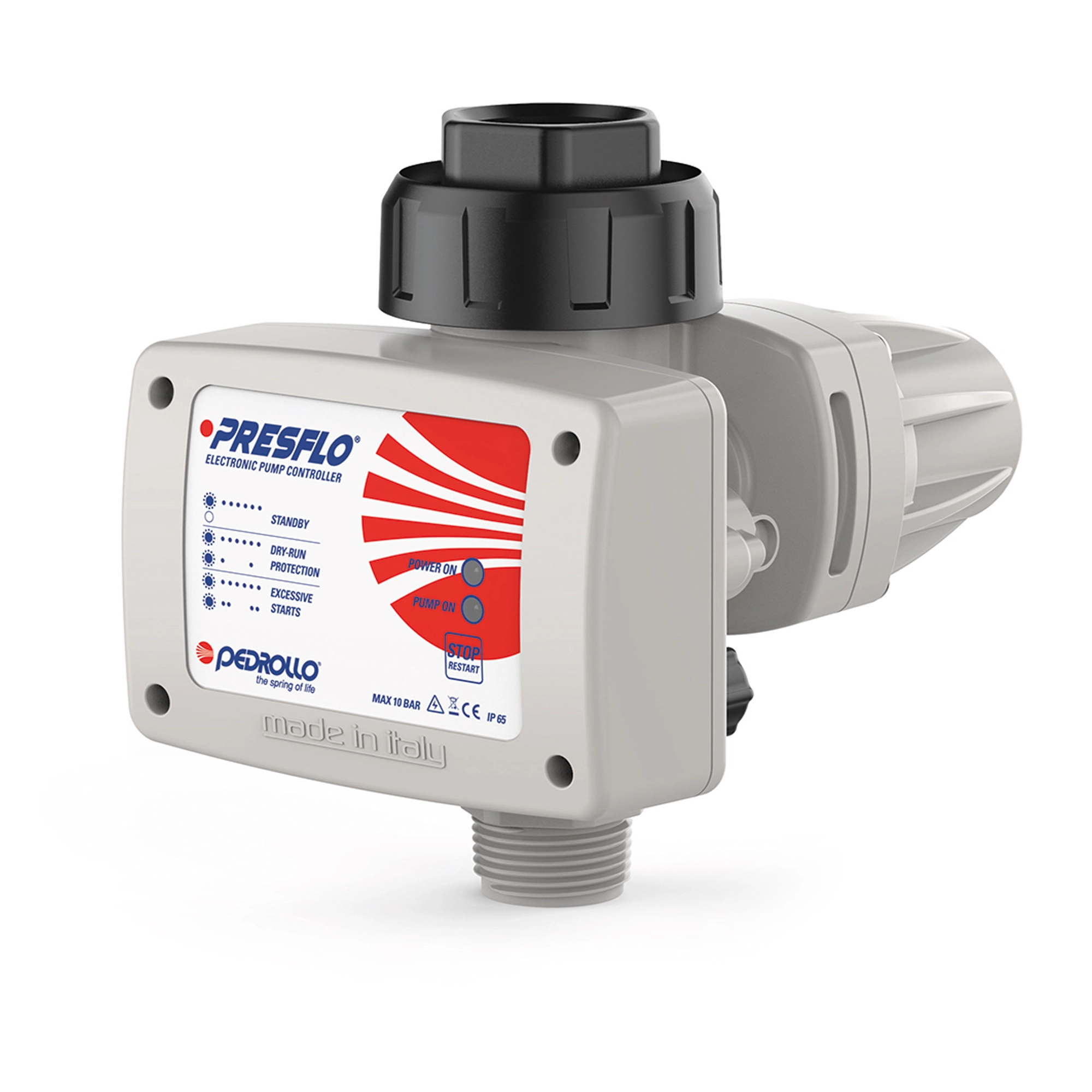

The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.
RANGE OPTIONS
- 10ltr CAT 5 Fixed Speed
- 38ltr CAT 5 Fixed Speed
SELF PRIMING PUMP
FIXED SPEED CONTROL
KEY FEATURES
- Non-corrosive holding tank
- Pre-fitted WRAS approved fill valve
- Integral screened overflow weir
- Minimal installation requirement
- Dry-run protection with auto restart (time delay)
- Self-priming Jet Pump
- AB Air gap
- Suitable up to Fluid Category 5
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Pump: JCRm1C
- Inlet: ¾” BSP
- Outlet: 1” BSP
- Overflow: 40mm Waste pipe
DIMENSIONS
10ltr CAT 5 Fixed Speed L: 500mm W:300mm H:670mm Weight: 14kg
38ltr CAT 5 Fixed Speed L: 500mm W:300mm H:920mm Weight: 20kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| JCRm1C | 0.37 | 0.5 | 3.4 | Q l/min | 60 | 25 | 5 | - | - | - |
| Pump Option | Power | Performance |
|---|---|---|
| JCRm1C | 0.37kW 0.5HP 3.4A | 60lpm @ 1 Bar | 25lpm @ 2 Bar | 5lpm @ 3 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
