WATER SOFTENER SYSTEMS
WATER SOFTENER SYSTEMS
In addition to a Multiboost delivering water at the right pressure for your application you can now have softened & boosted water at the same time.

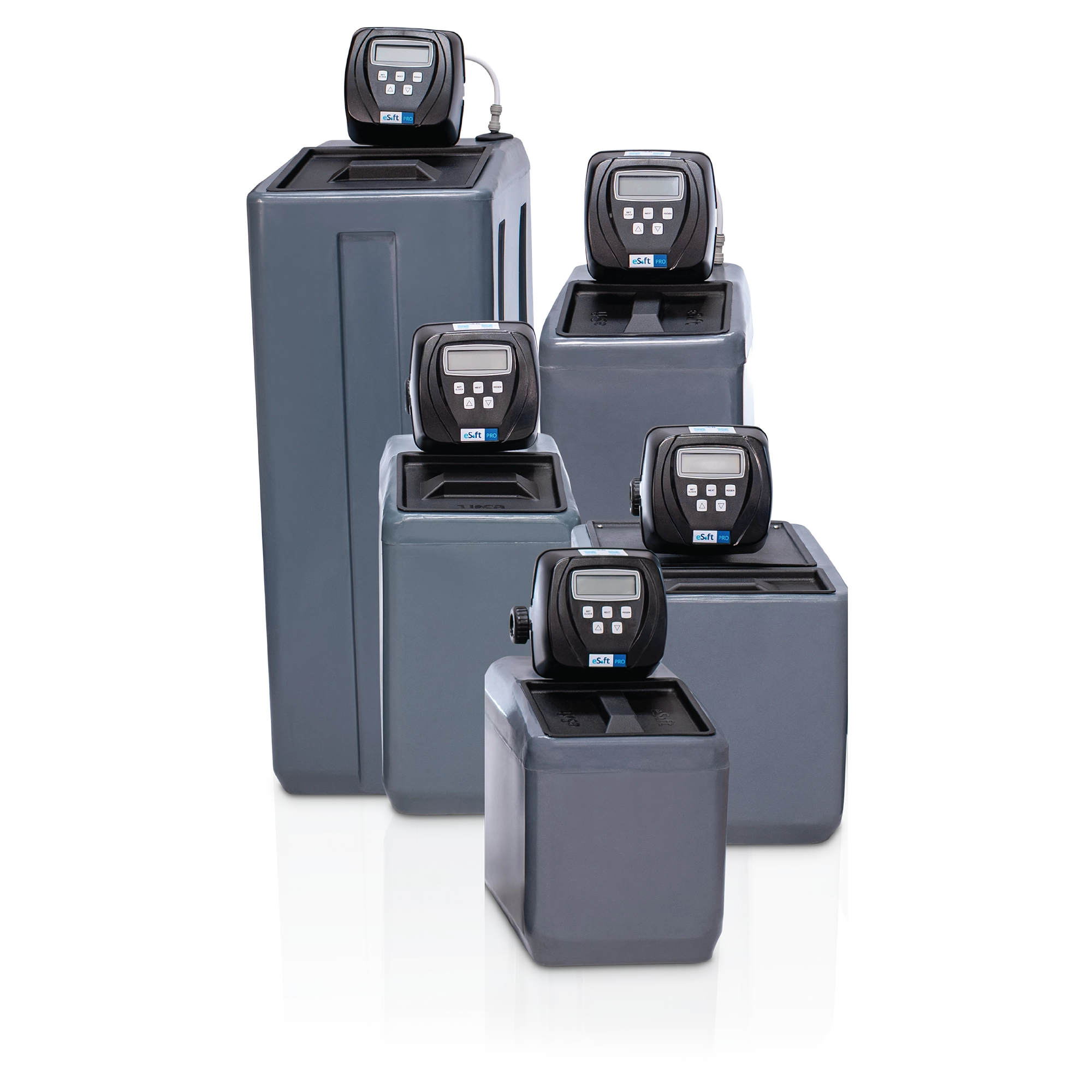

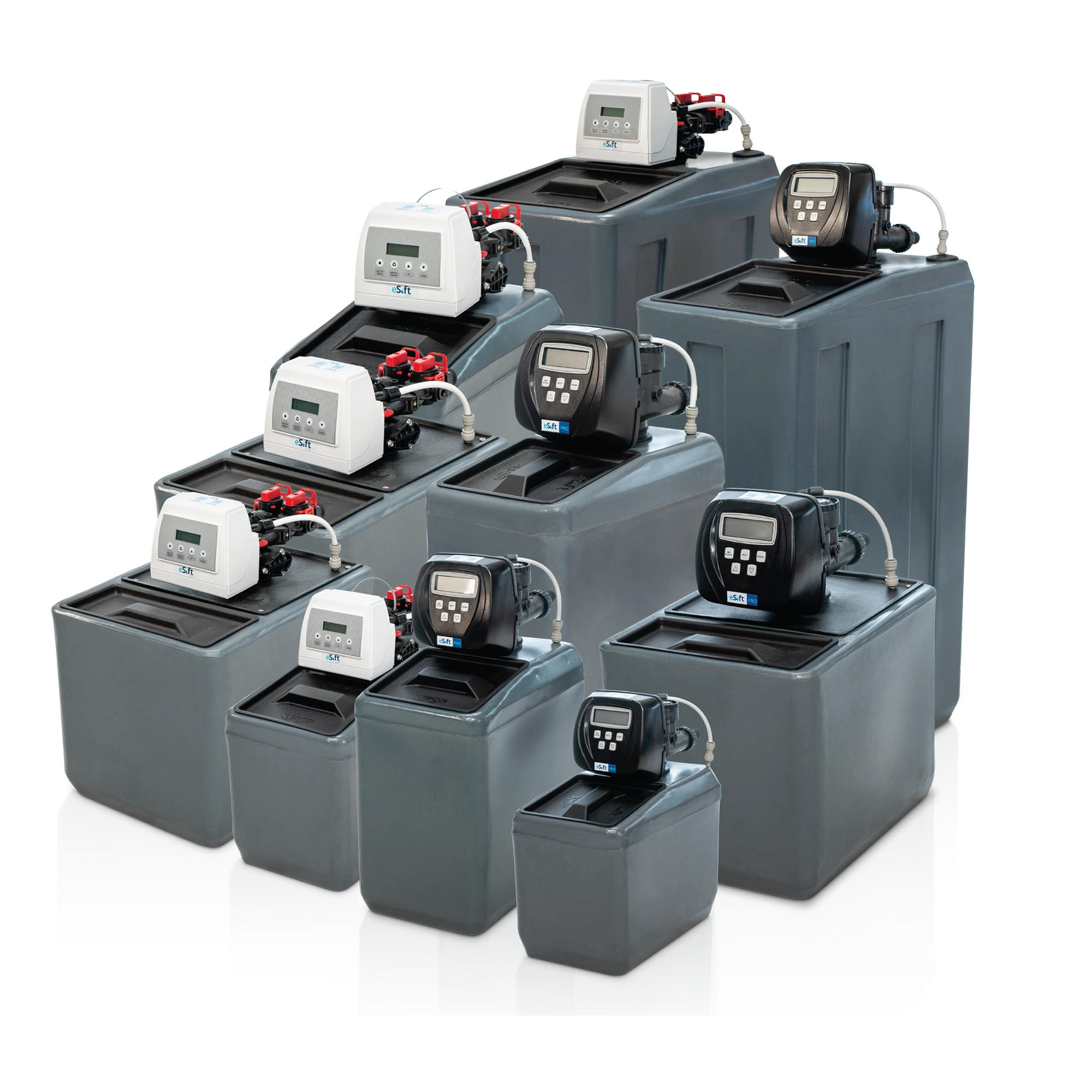

As part of our water treatment product range we offer water softeners for hard water areas. Our range includes cabinet water softeners and simplex or duplex softeners depending on your Multiboost system and application.
Water Softeners work to reduce the amount of minerals in the water thereby softening the water. The softening process involves removing high levels of calcium and magnesium through an ion-exchange process. The calcium and magnesium ions that cause the build-up of limescale are replaced by sodium ions.
Usage and spend on detergents and shampoos is reduced by up to 50%
Improved efficiency and longer life of appliances
Time is saved cleaning and no need to use harsh detergents
People with eczema and other skin conditions have seen significant improvements
Hair feels softer and clothes are softer and brighter as a result of using soft water
Energy bills can be reduced by at least 10%

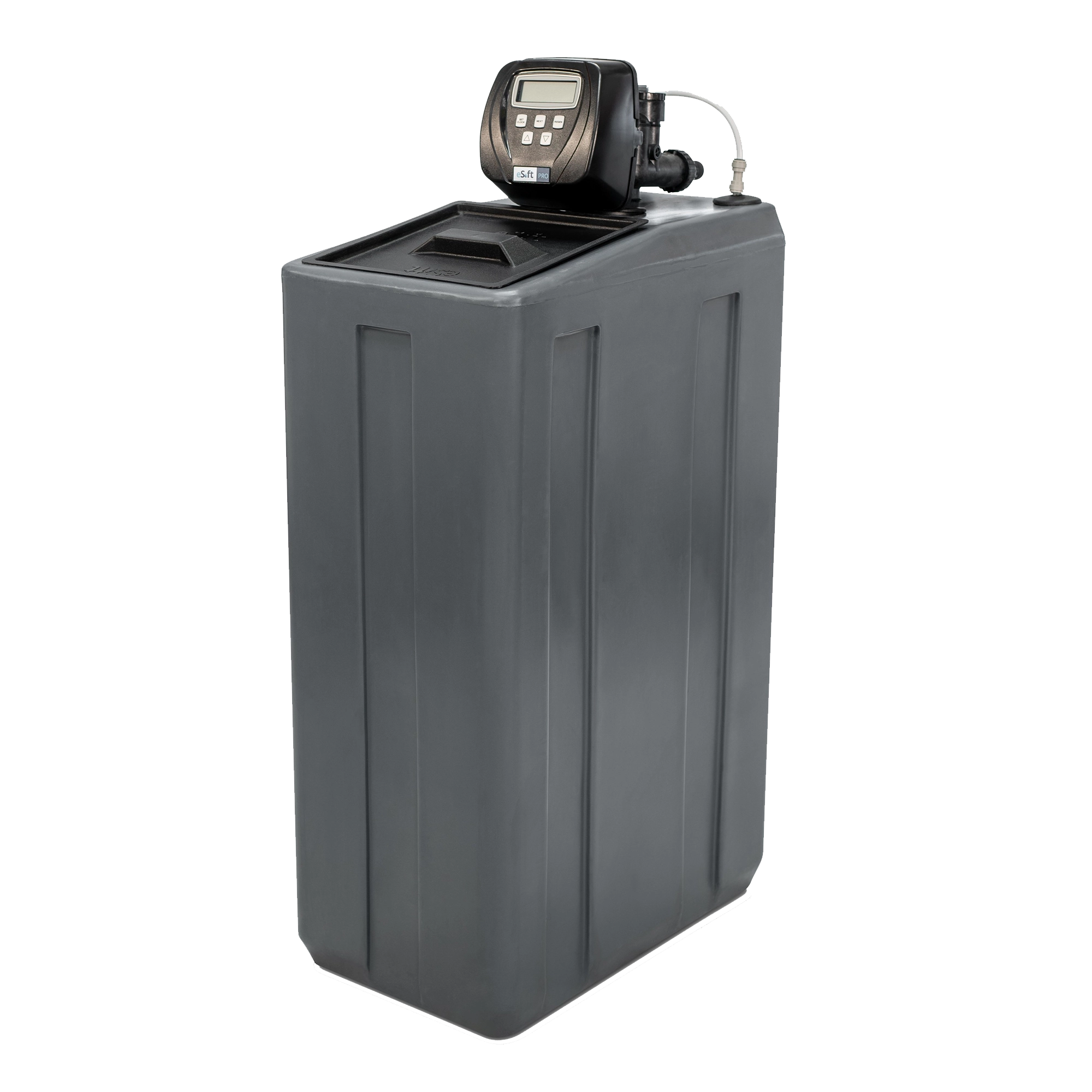

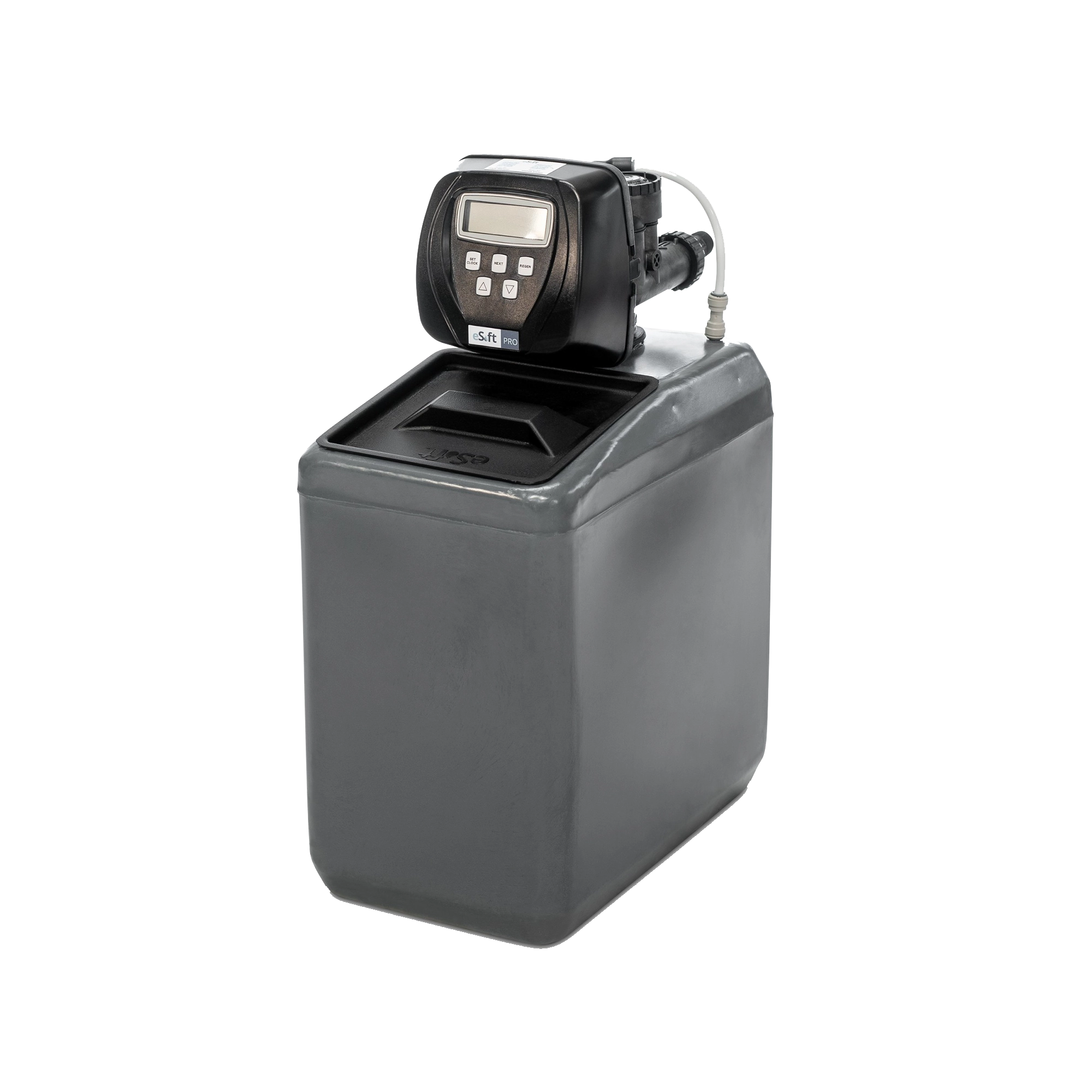

| Softener | 5L | 8L | 10L | 20L | 30L |
|---|---|---|---|---|---|
| Softener Specification | 8 x 13″ | 10 x 13″ | 8 x 17″ | 8 x 24″ | 10 x 35″ |
| Height (ECO) | 490mm | 510mm | 580mm | 750mm | 1050mm |
| Height (PRO) | 523mm | 550mm | 625mm | 800mm | 1095mm |
| Total Depth | 520mm | 500mm | 440mm | 440mm | 580mm |
| Width | 270mm | 340mm | 240mm | 240mm | 350mm |
| Maximum Working Pressure | 5 bar | 5 bar | 5 bar | 5 bar | 5 bar |
| Minimum Working Pressure | 1.7 bar | 1.7 bar | 1.7 bar | 1.7 bar | 1.7 bar |
| Service Flow Rate | 10 L/min | 10 L/min | 10 l/min | 15 l/min | 23 l/min |
| Pressure Drop at Service Flow | 0.2 bar | 0.2 bar | 0.2 bar | 0.35 bar | 0.55 bar |
| Resin Volume | 5 litres | 8 litres | 8 litres | 20 litres | 30 litres |
| Minimum Supply Flow Rate | 5L/min | 8L/min | 8 l/min | 8 l/min | 8 l/min |
| Salt Use Per Regeneration | 0.75 kgs | 1.2 kgs | 1.2 kgs | 3.0 kgs | 4.5 kgs |
| Inlet/Outlet/Drain Connections | 3/4” BSPM | 3/4” BSPM | 3/4″ BSPM | 3/4″ BSPM | 3/4″ BSPM |
| Overflow Connections | 1/2″ | 1/2” | 3/8″ hose tail | 3/8″ hose tail | 3/8″ hose tail |
| Softening Capacity @ 300PPM | 830 litres | 1330 litres | 1330 litres | 2500 litres | 5000 litres |
External Enclosure 5L 10L 20L 1200470
25kg eSoft Salt 1010098
10kg eSoft Salt 1235632
Simplex Softeners Various
Please note that we have a policy of continuous product development and specifications may change from those shown.
WATER TREATMENT SYSTEMS
Our range of water treatment systems ensure that you not only increase your water pressure and flow but also the quality of your water.
WATER SOFTENERS
Used to prevent limescale and soften hard water. Improving the quality of your water.
ULTRAVIOLET SYSTEMS
If you need to purify water contaminated with harmful bacteria, utilising UV water treatment systems is one of the best ways to do it.
REVERSE OSMOSIS SYSTEMS
Reverse osmosis is one of the most effective methods of water purification for homes and businesses eliminating up to 99.8% contaminants
ANTI-SCALE SYSTEMS
Full house anti-scale protection. The unique media in ScaleArmor™ prevents the formation of limescale. Certified 86% scale prevention.
WHERE TO BUY
For details on where to purchase Multiboost Products please contact the EPS Office.
